Lista de Piezas / APISONADOR MASALTA EMR75M (MOTOR MASALTA MG165)
1 |
|

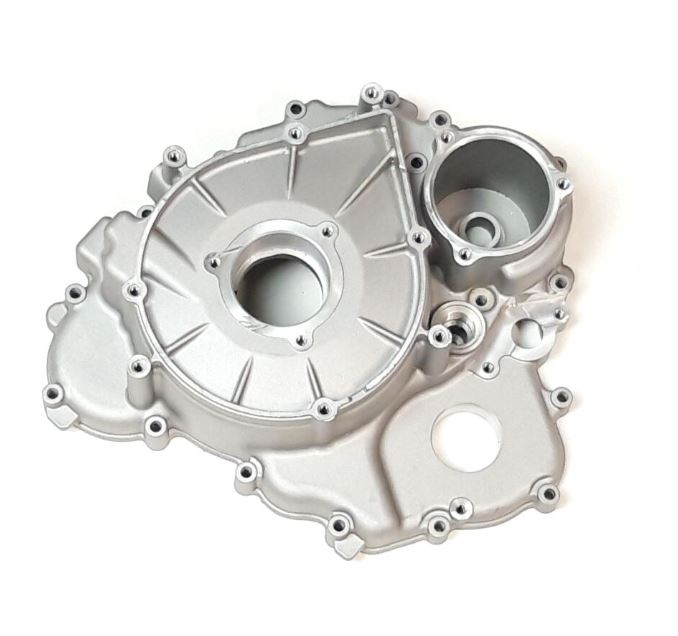

CRANK CASE (1) | Parte #MRS80-804100D-C | $73,45 | |
2 |
|
BEARING 6207-GB276 (1) | Parte #GB276-6207 | $22,60 | |
3 |
|
ROBIN4.0-CRANK GEAR (1) | Parte #MRS80-804101B | $101,34 | |
4 |
|

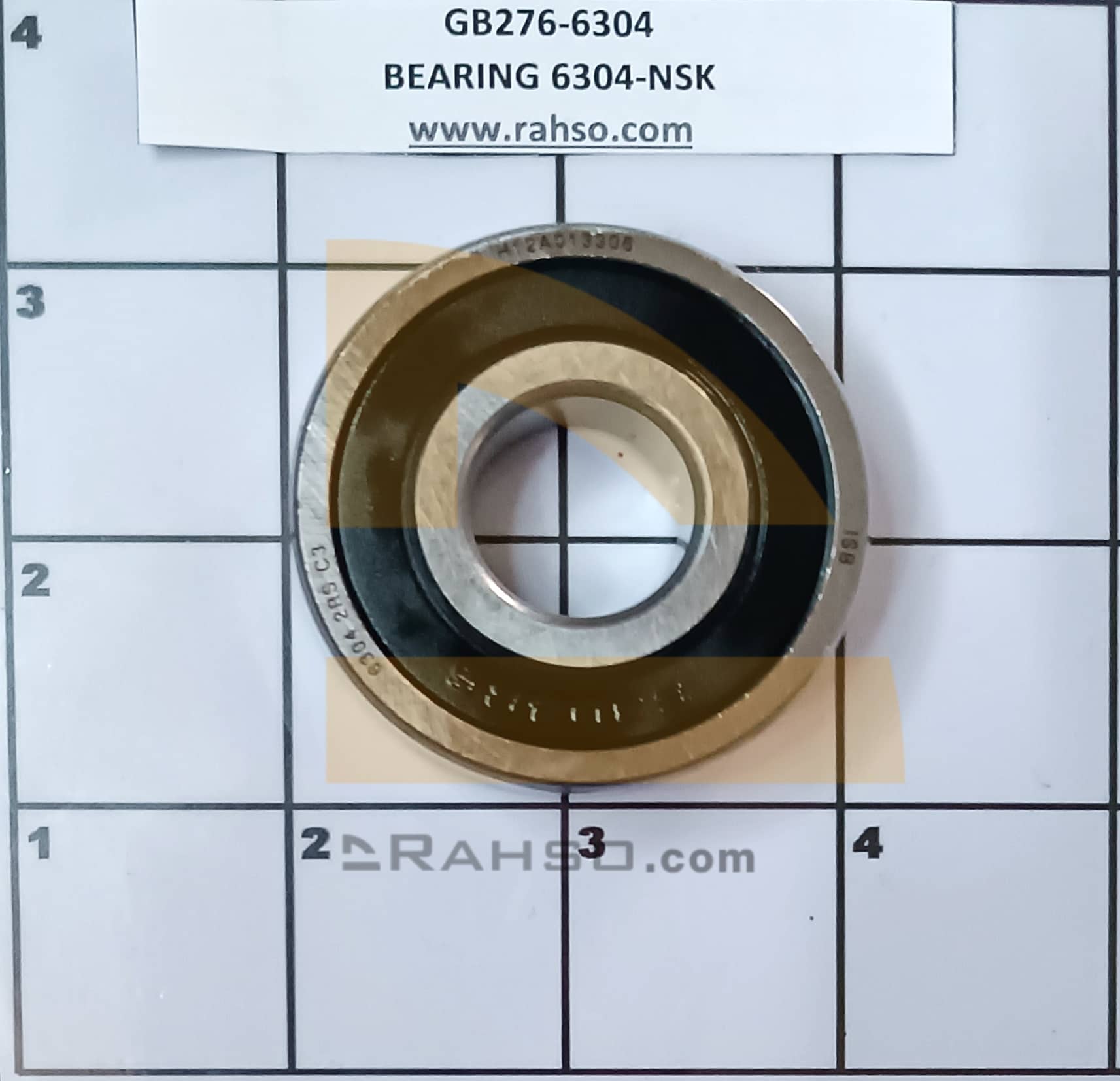

BEARING 6304-NSK (1) | Parte #GB276-6304 | $6,69 | |
5 |
|

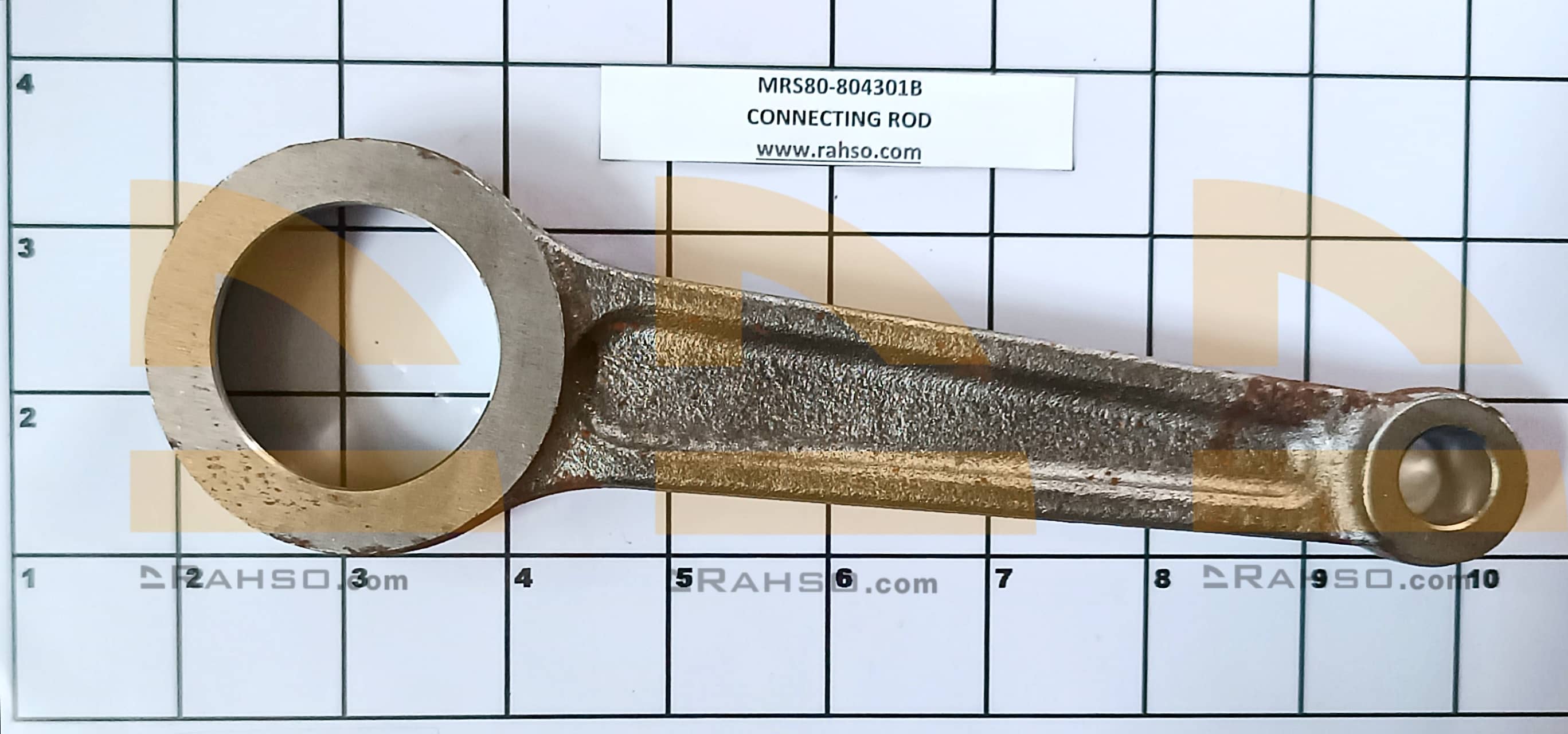

CONNECTING ROD (1) | Parte #MRS80-804301A | $101,52 | |
11 |
|

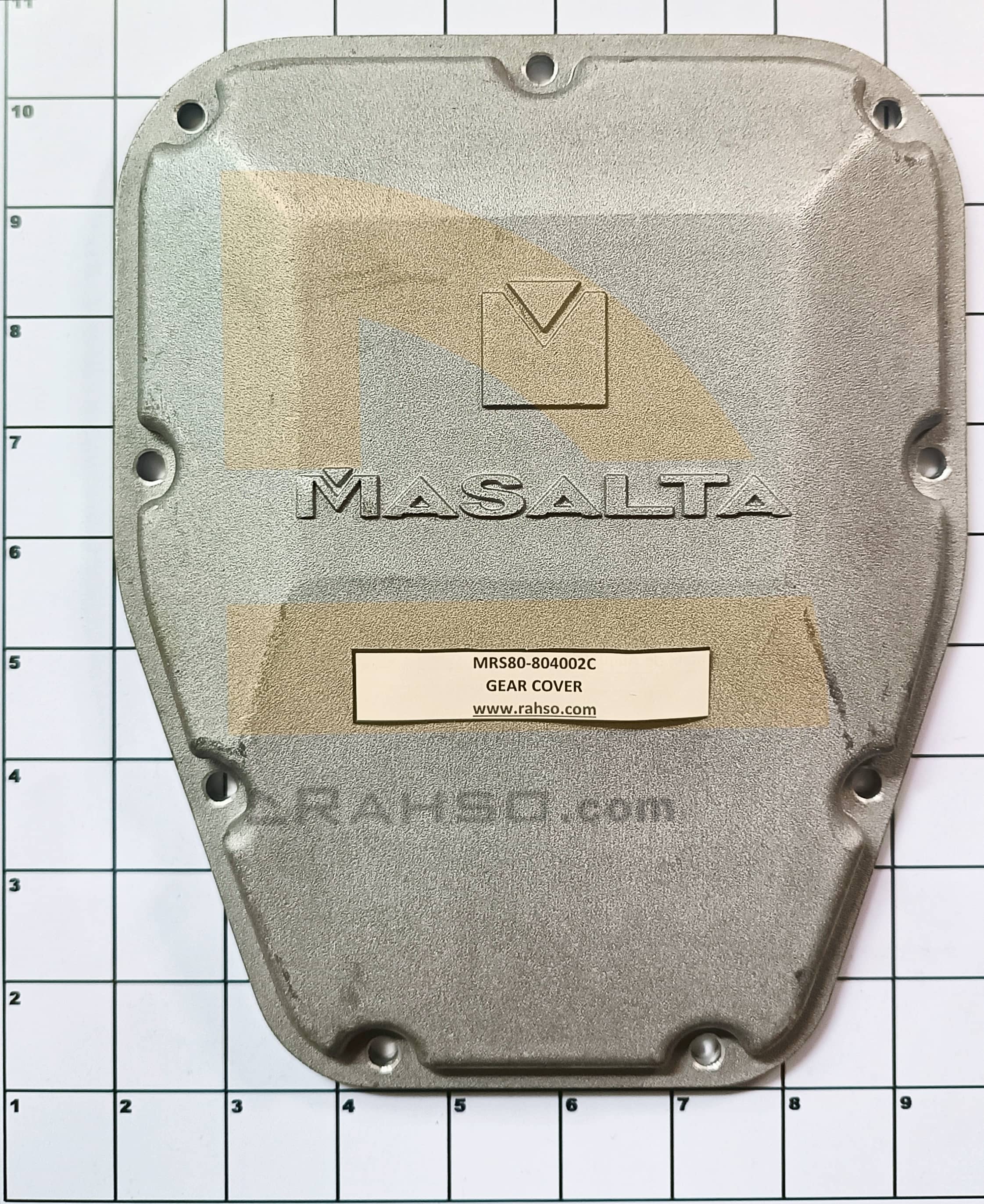

GEAR COVER (1) | Parte #MRS80-804002C | $30,42 | |
15 |
|

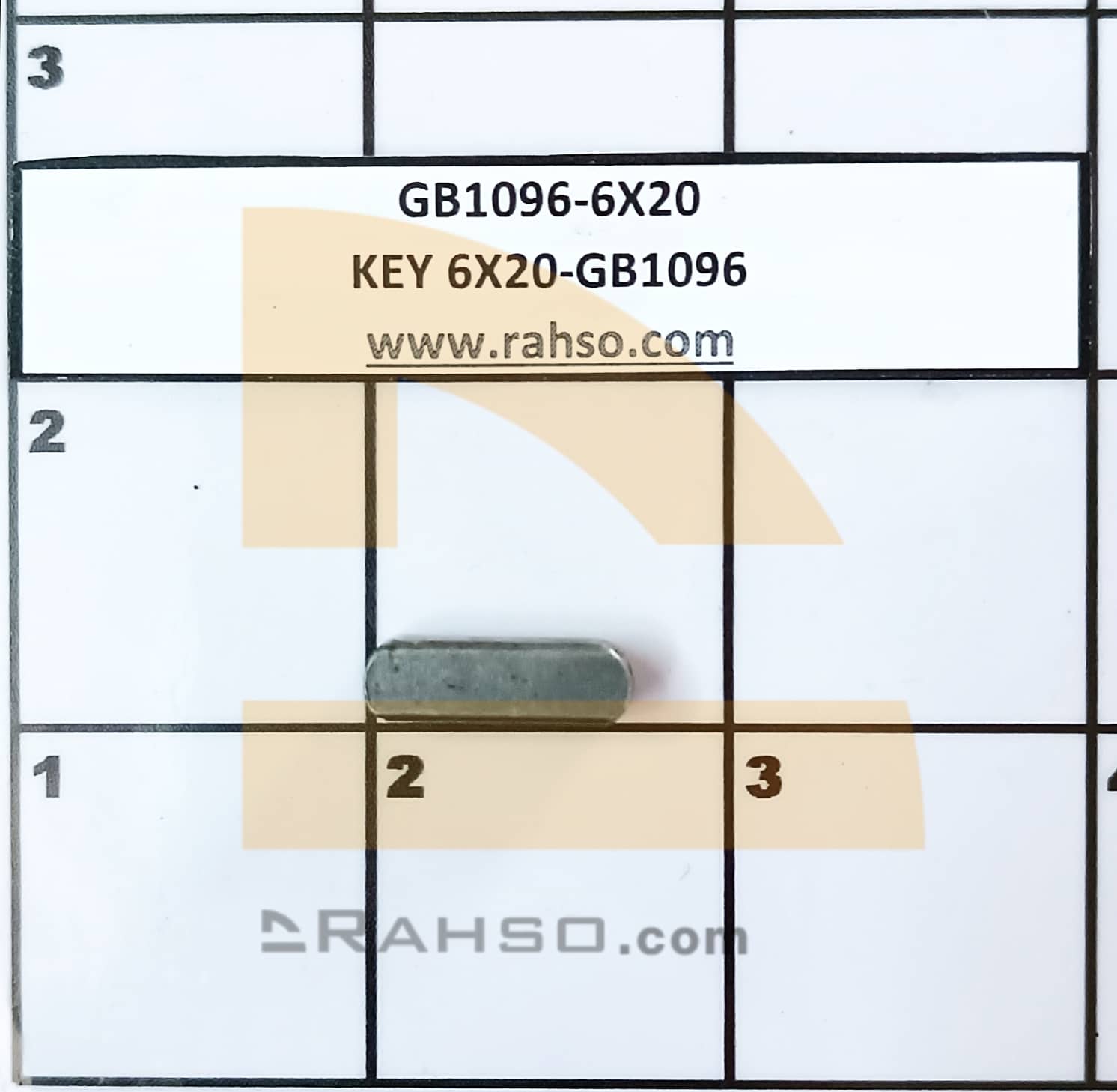

KEY 6X20-GB1096 (1) | Parte #GB1096-6X20 | $0,57 | |
16 |
|

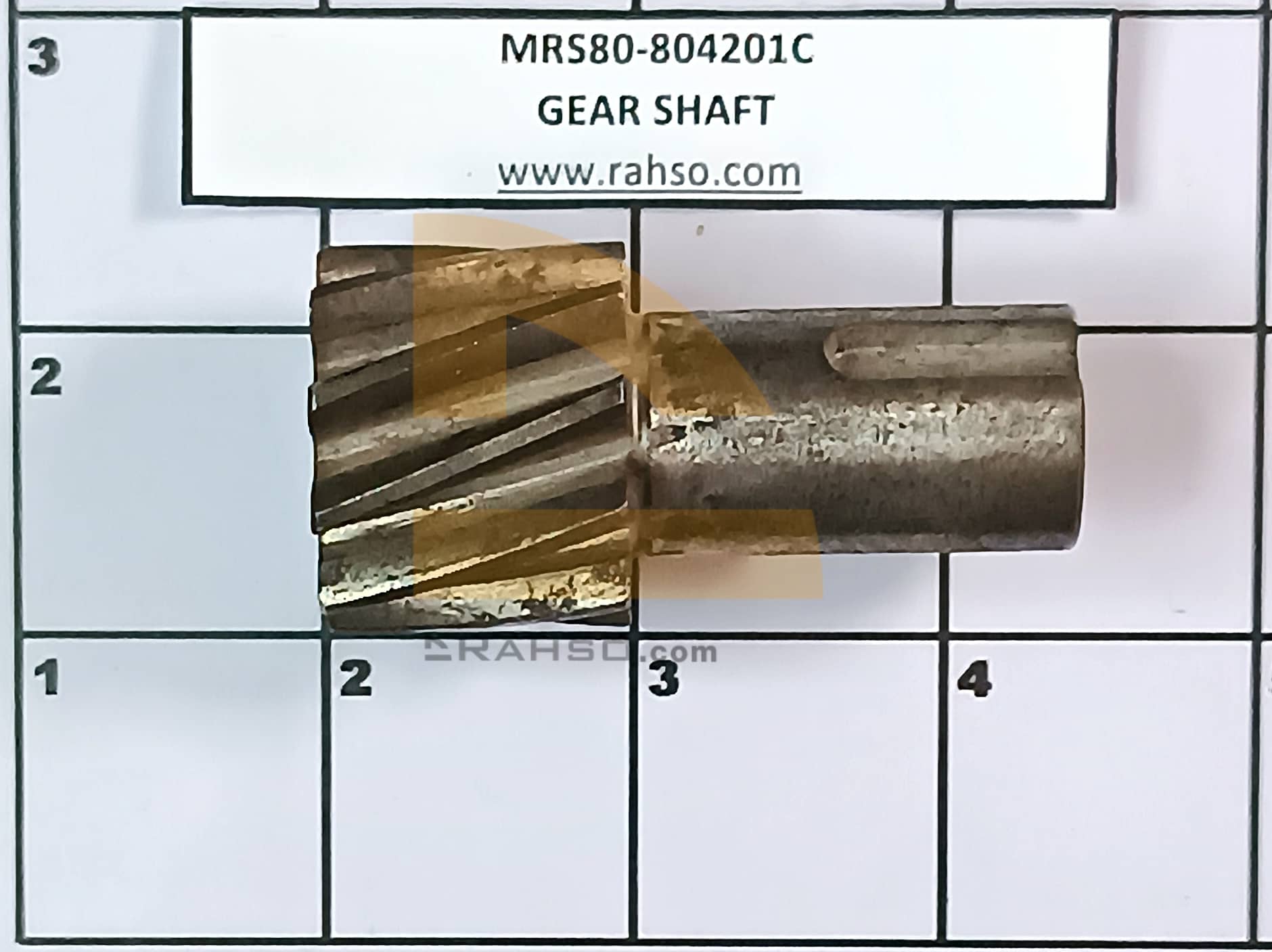

GEAR SHAFT (1) | Parte #MRS80-804201C | $20,11 | |
18 |
|

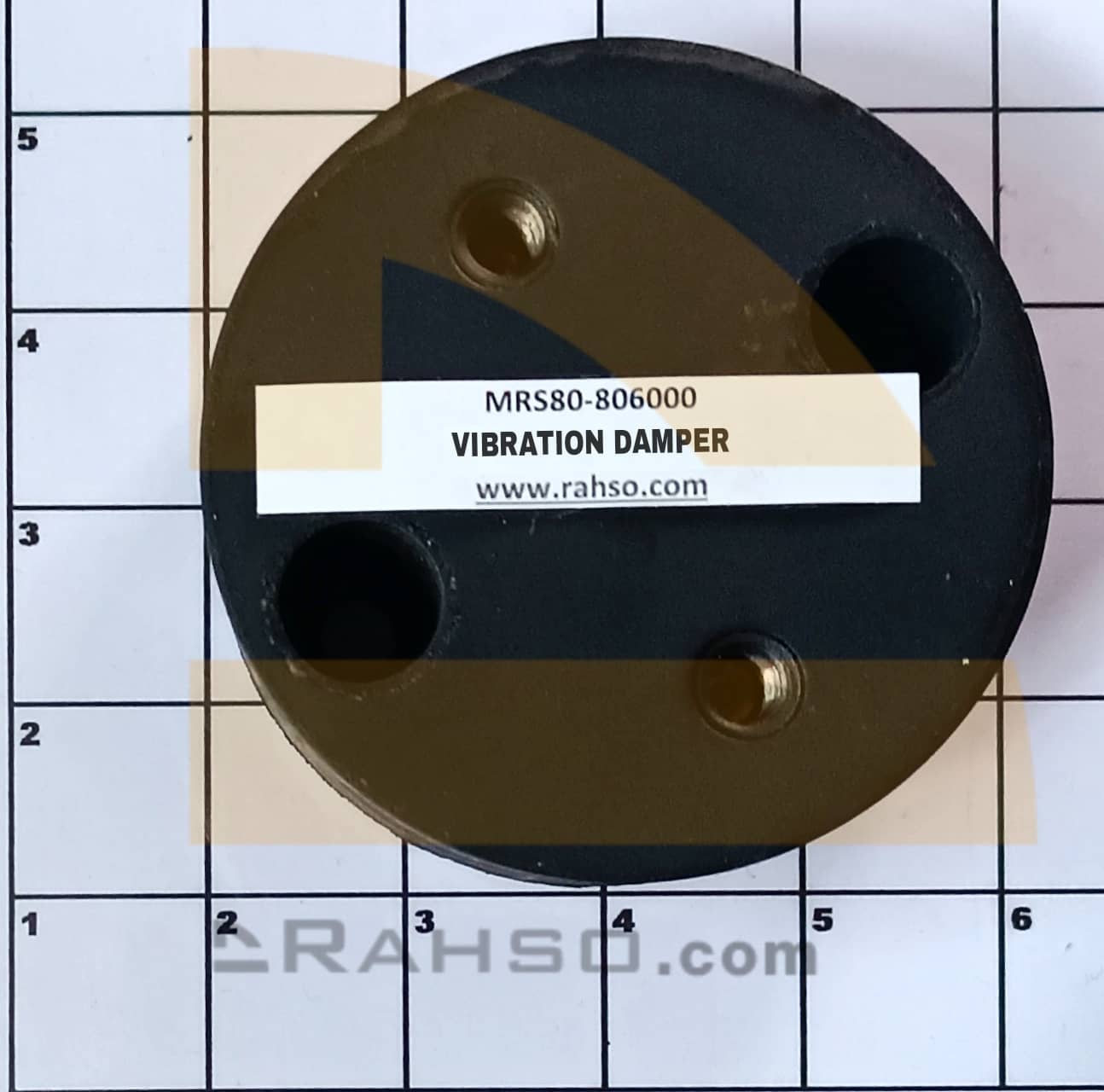

VIBRATION DAMPER (2) | Parte #MRS80-806000 | $65,36 | |
23 |
|

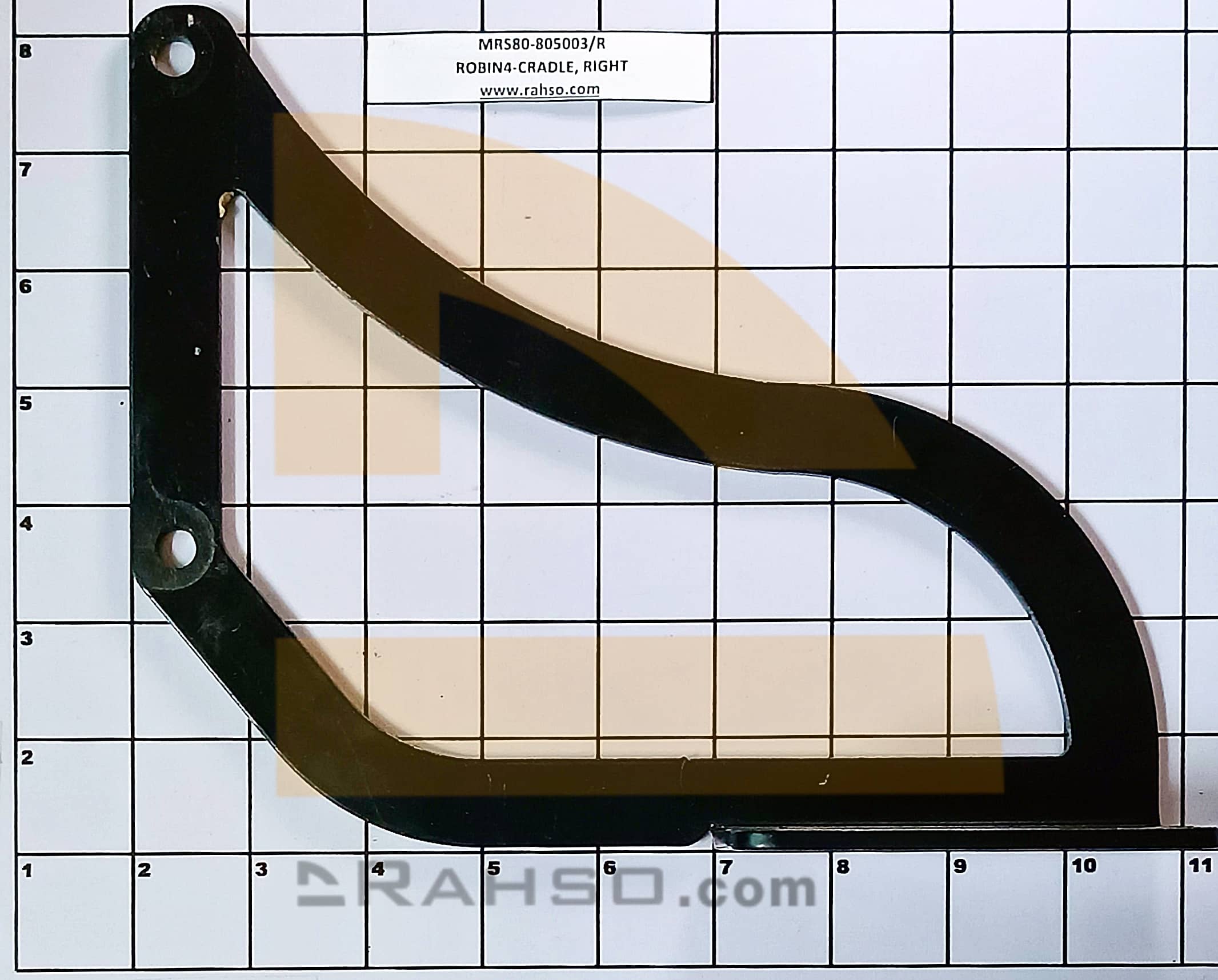

ROBIN4-CRADLE,RIGHT (1) | Parte #MRS80-805003/R | $32,45 | |
25 |
|

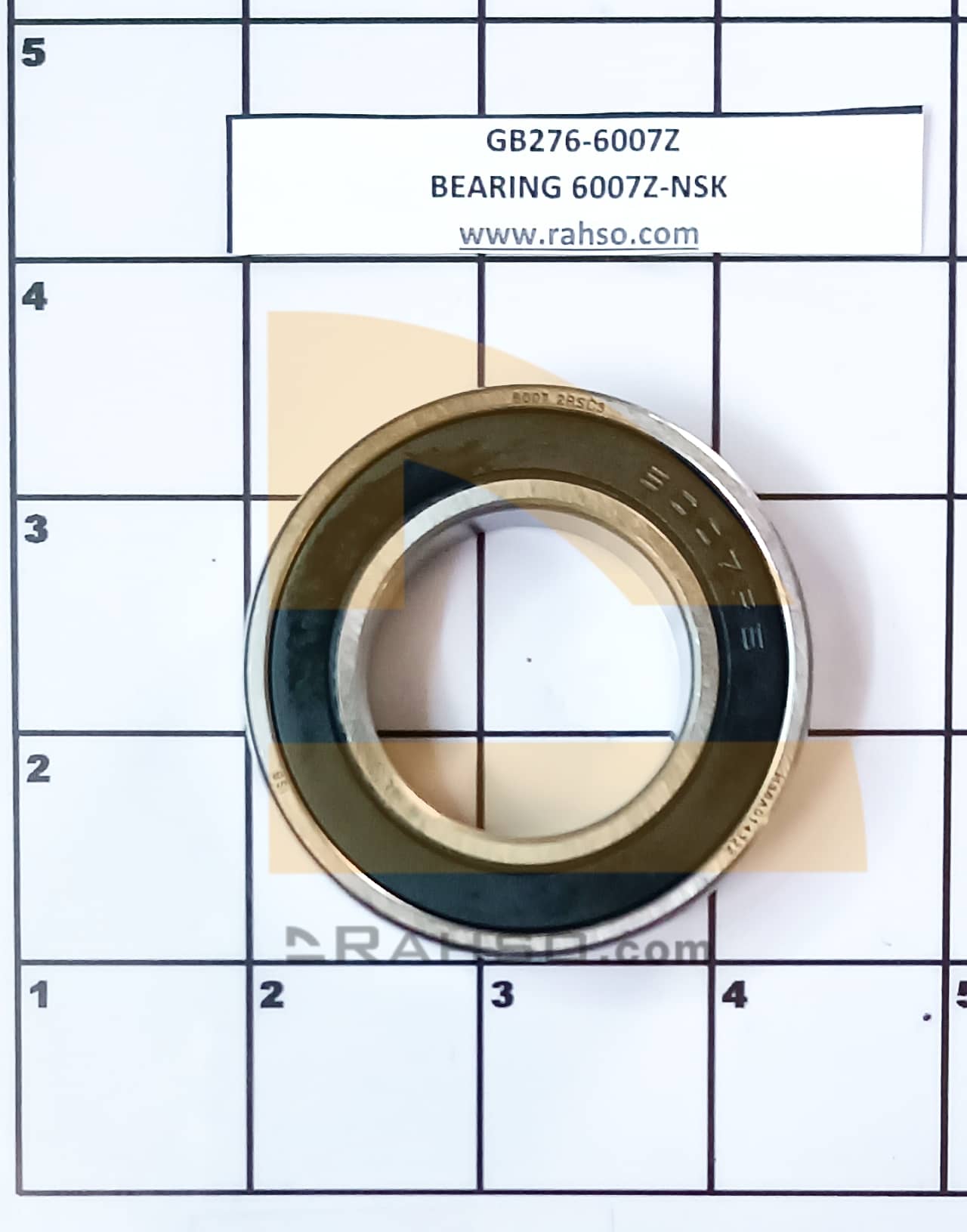

BEARING 6007-NSK (1) | Parte #GB276-6007Z | $10,51 | |
27 |
|

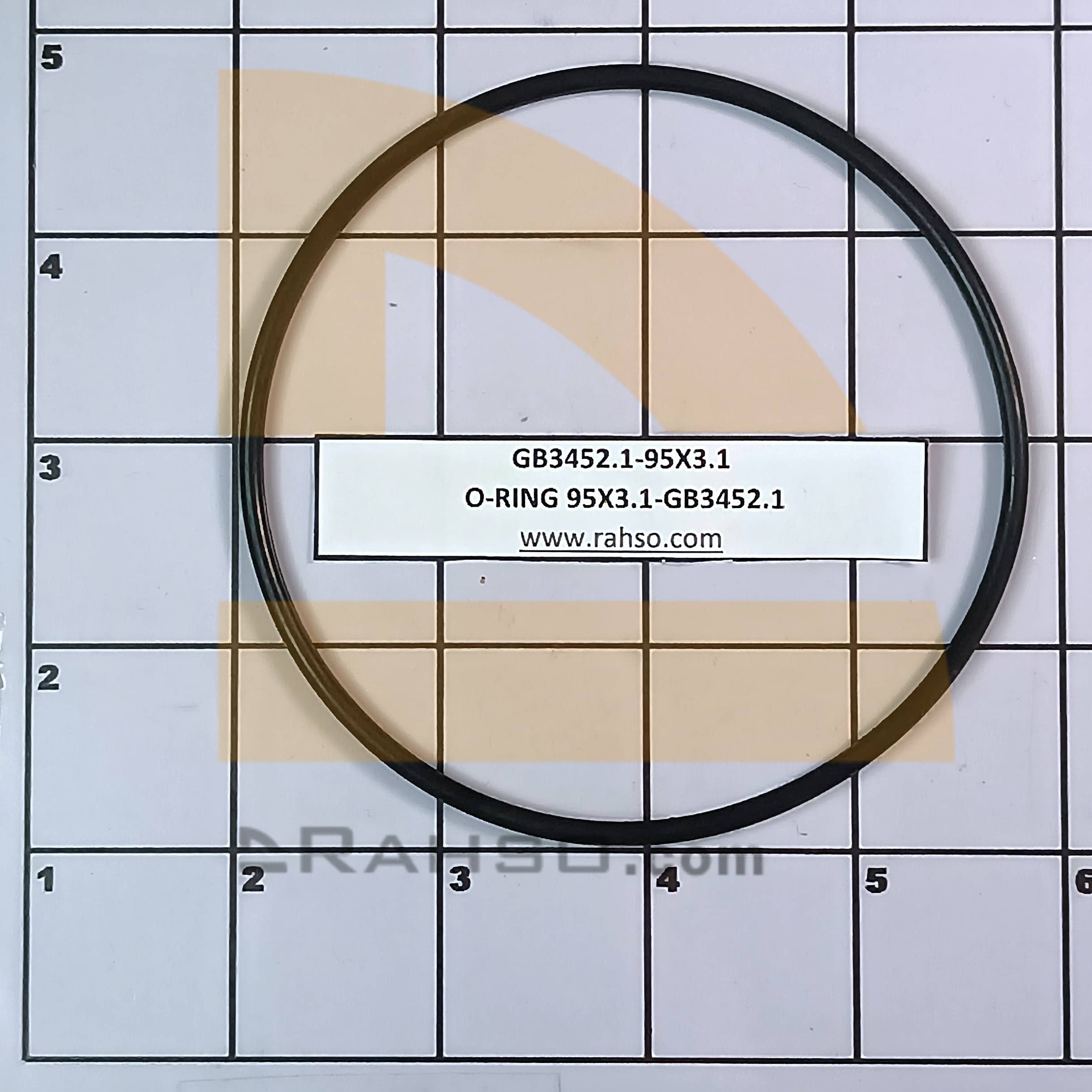

O-RING 95X3.1-GB3452.1 (1) | Parte #GB3452.1-95x3.1 | $0,27 | |
28 |
|

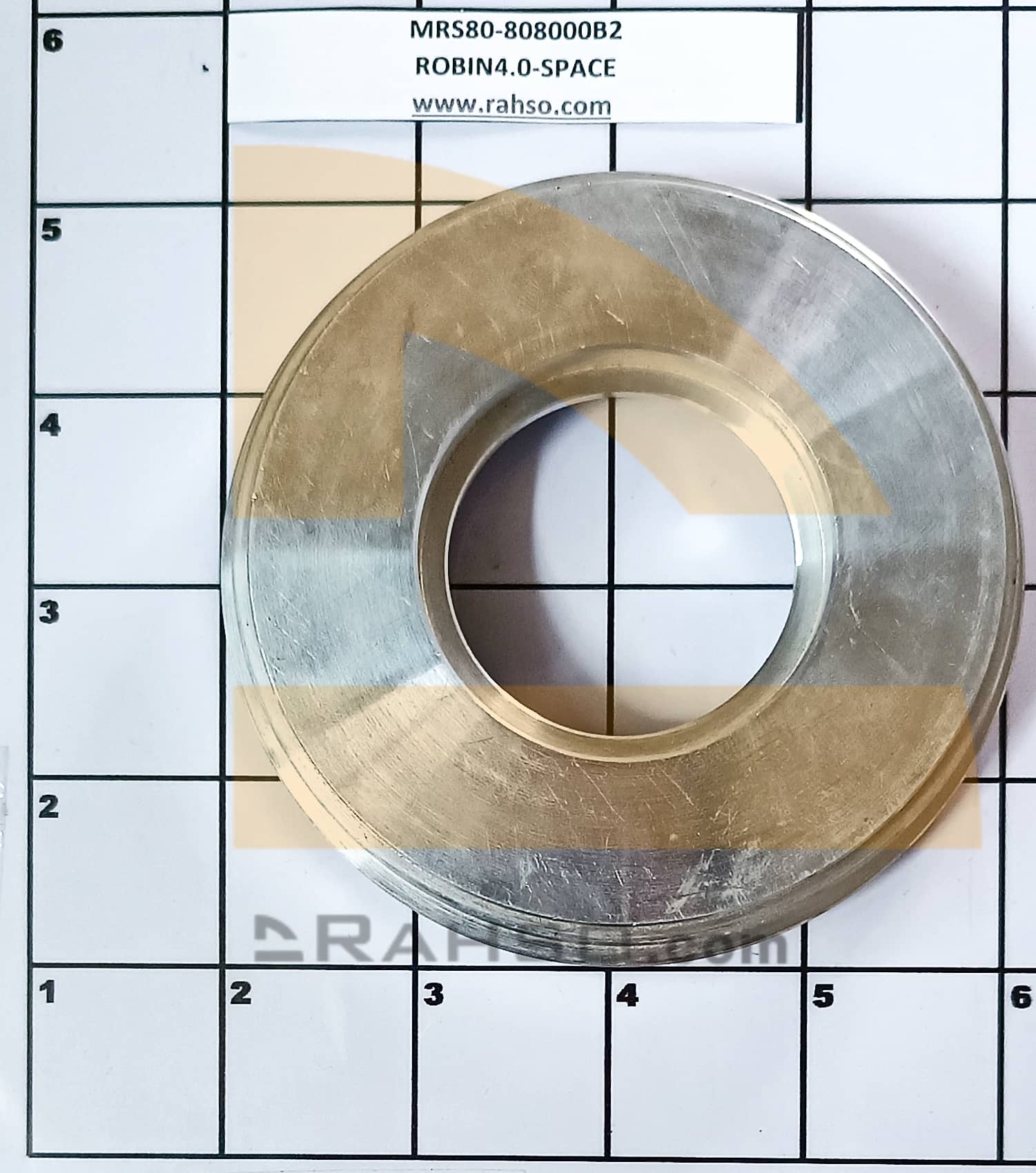

ROBIN4.0- SPACE (1) | Parte #MRS80-808000B2 | $119,58 | |
29 |
|

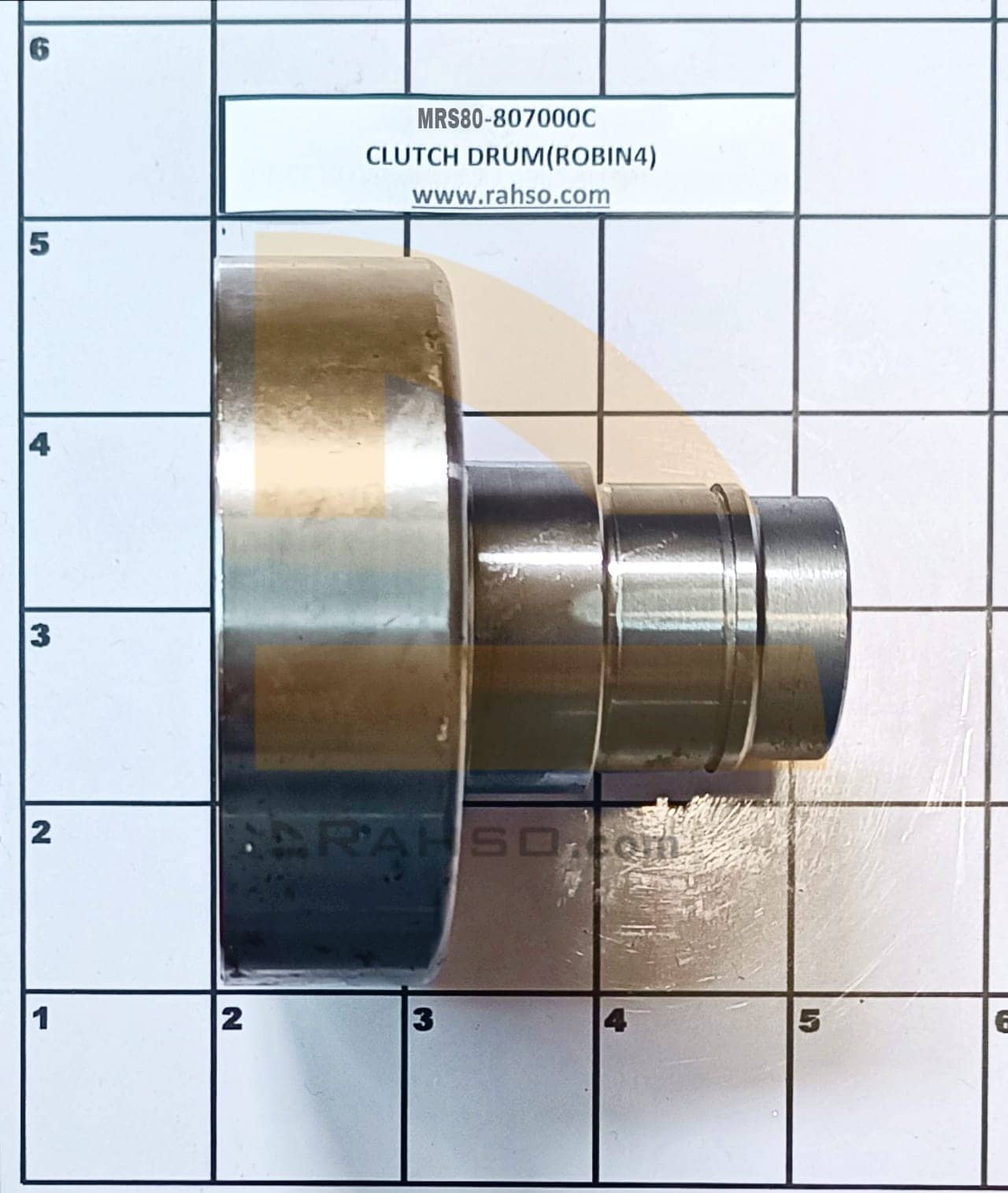

CLUTCH DRUM (ROBIN4) (1) | Parte #MRS80-807000C | $39,30 | |
33 |
|

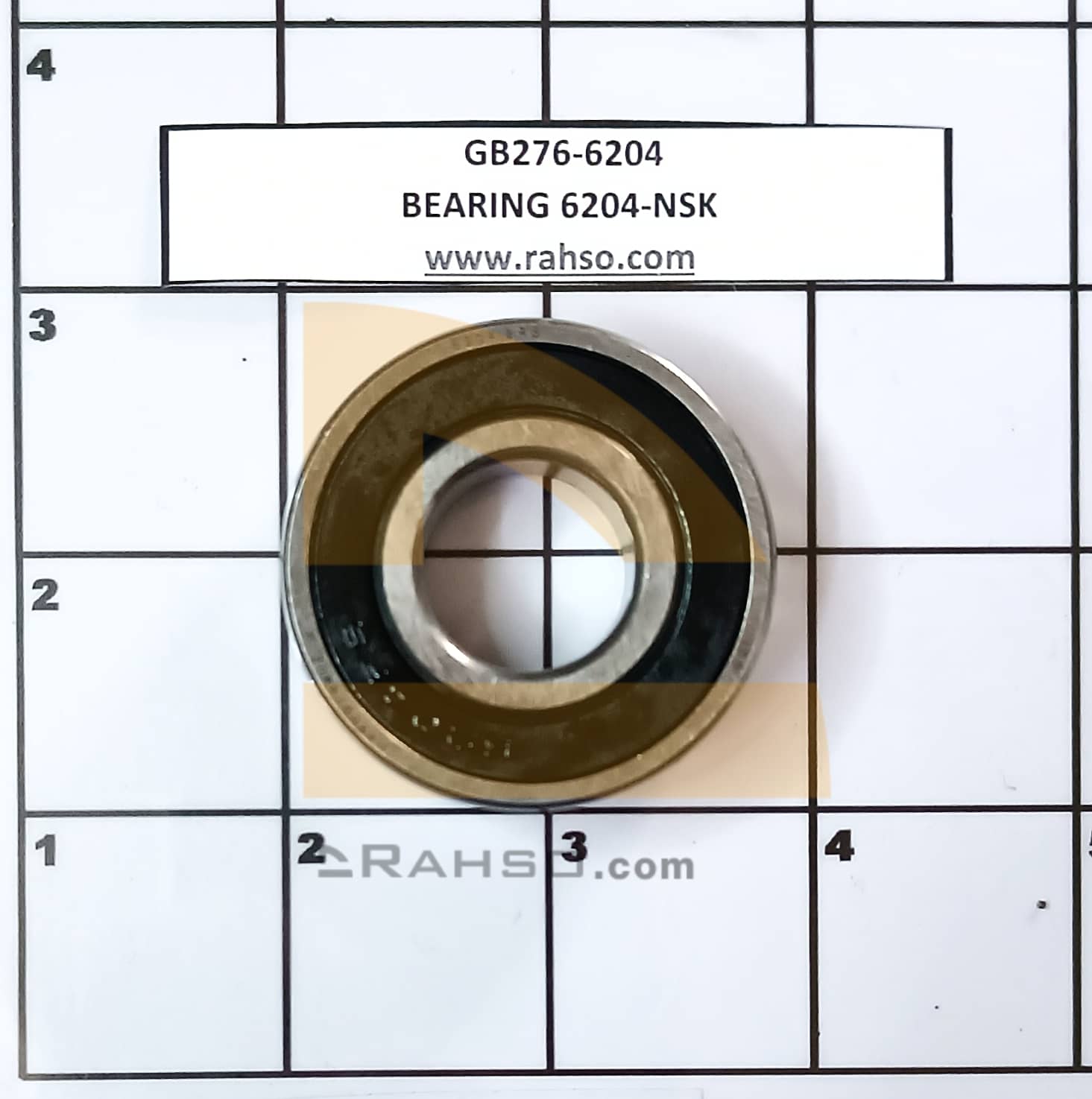

BEARING 6204-NSK (1) | Parte #GB276-6204 | $6,35 | |
41 |
|

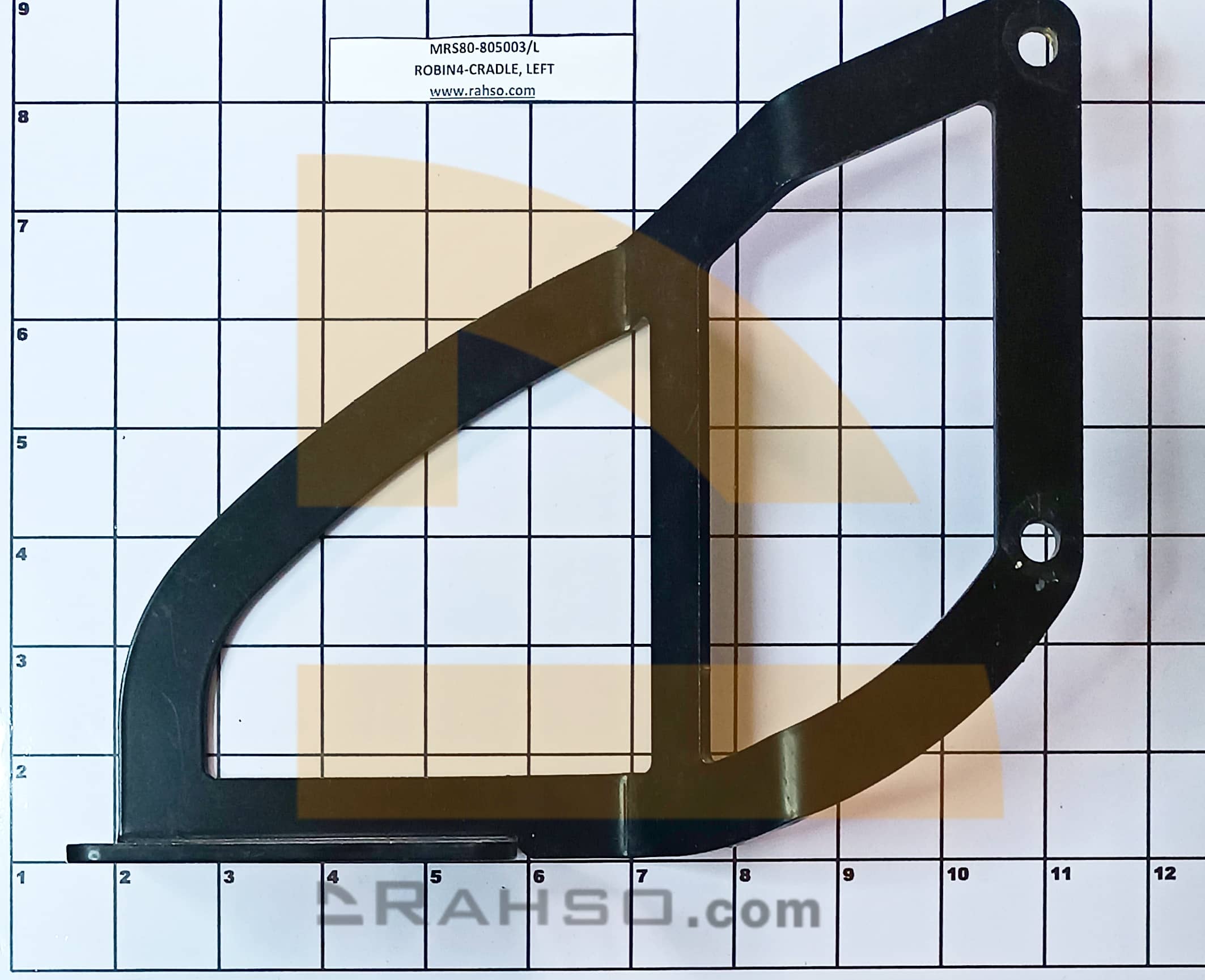

ROBIN4-CRADLE,LEFT (1) | Parte #MRS80-805003/L | $32,45 | |
49 |
|
CLUTCH ASSY (1) | Parte #MRS80-809000 | $65,99 | |
53 |
|

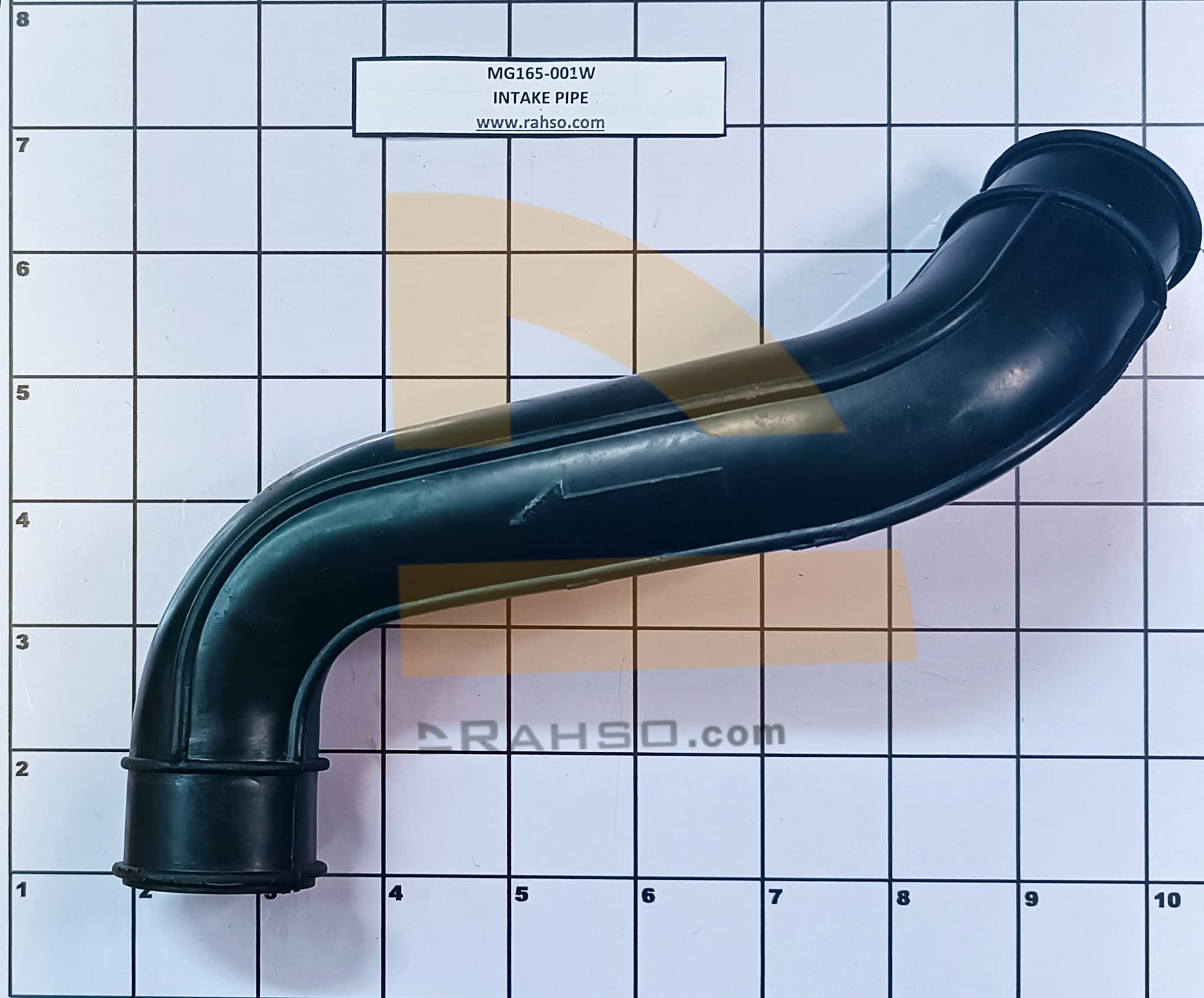

INTAKE PIPE (1) | Parte #MG165-001W | $12,18 | |
55 |
|

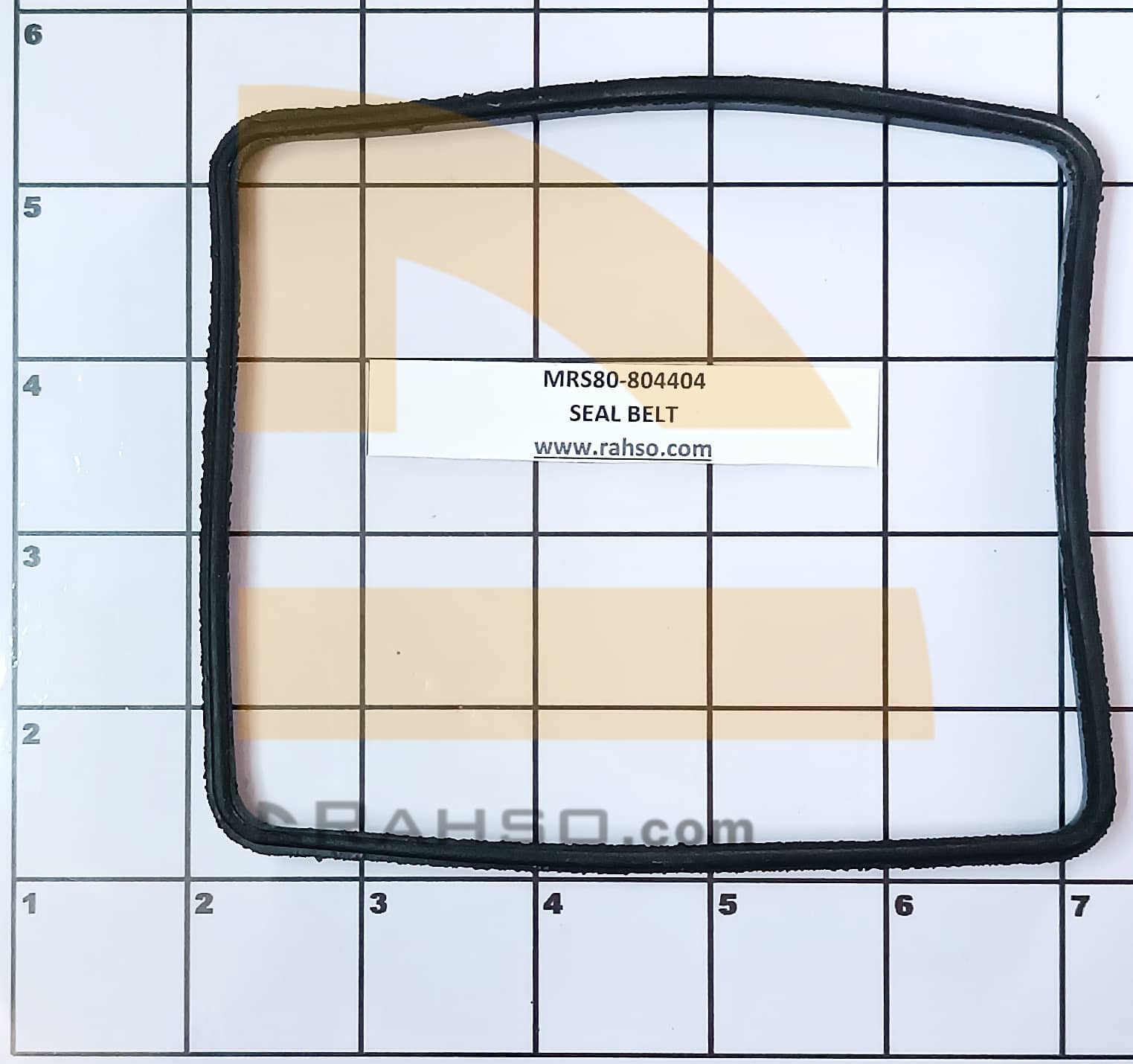

SEAL BELT (1) | Parte #MRS80-804404 | $0,60 | |
57 |
|

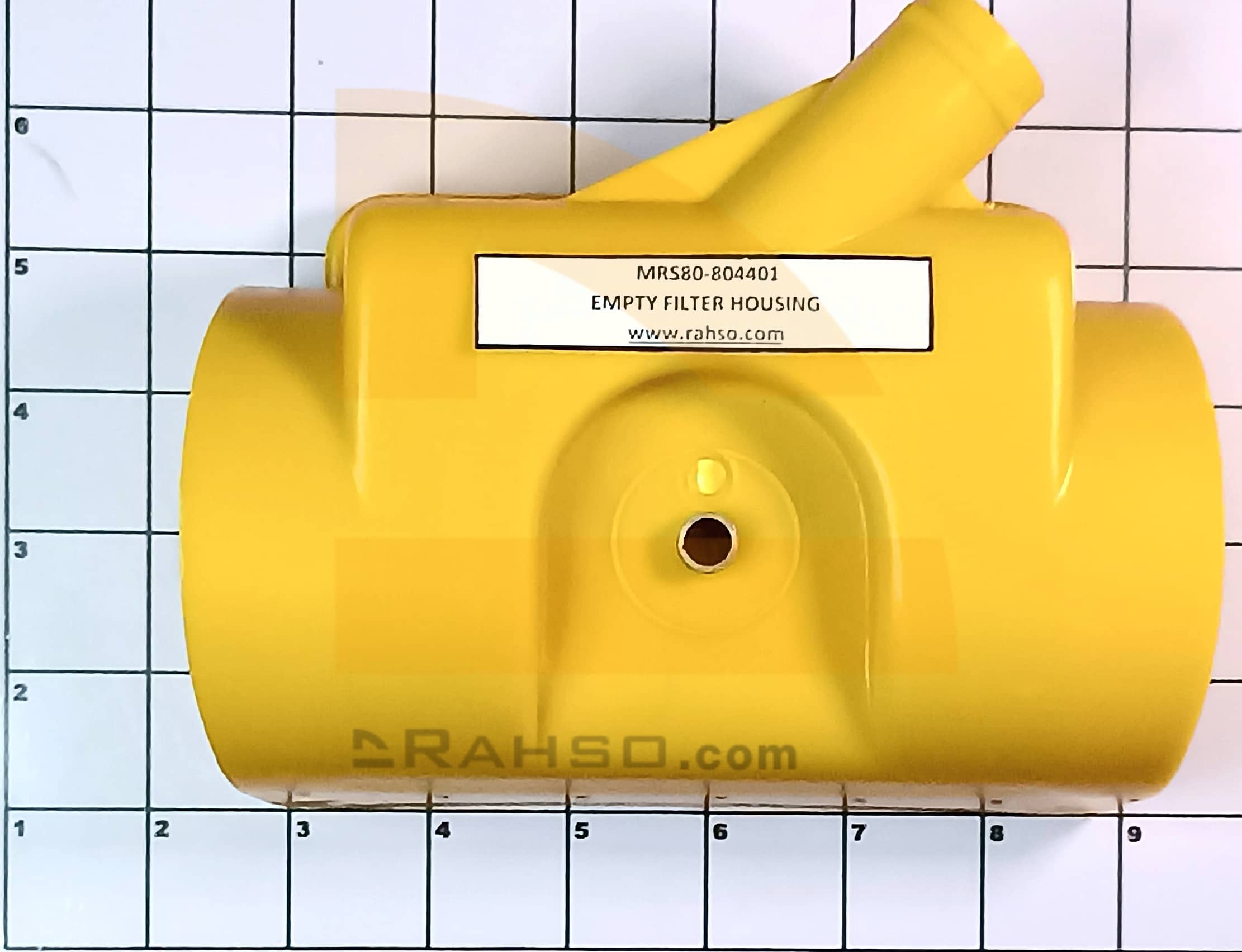

AIR CLEANER COVER/EMPTY FILTER HOUSING (1) | Parte #MRS80-804401 | $31,45 | |
58 |
|

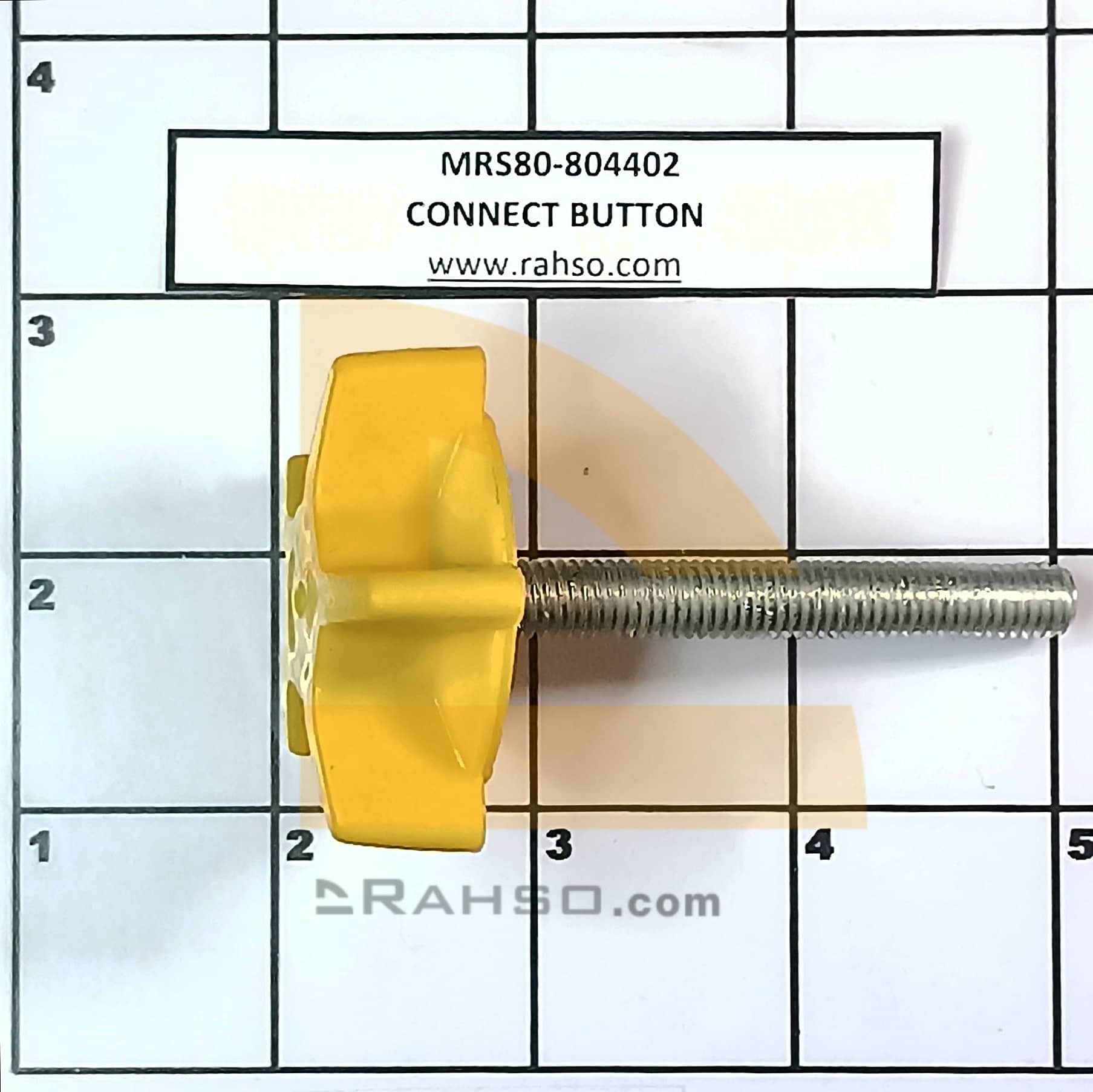

KNOB/CONNECT BUTTON (1) | Parte #MRS80-804402 | $4,64 | |
64 |
|

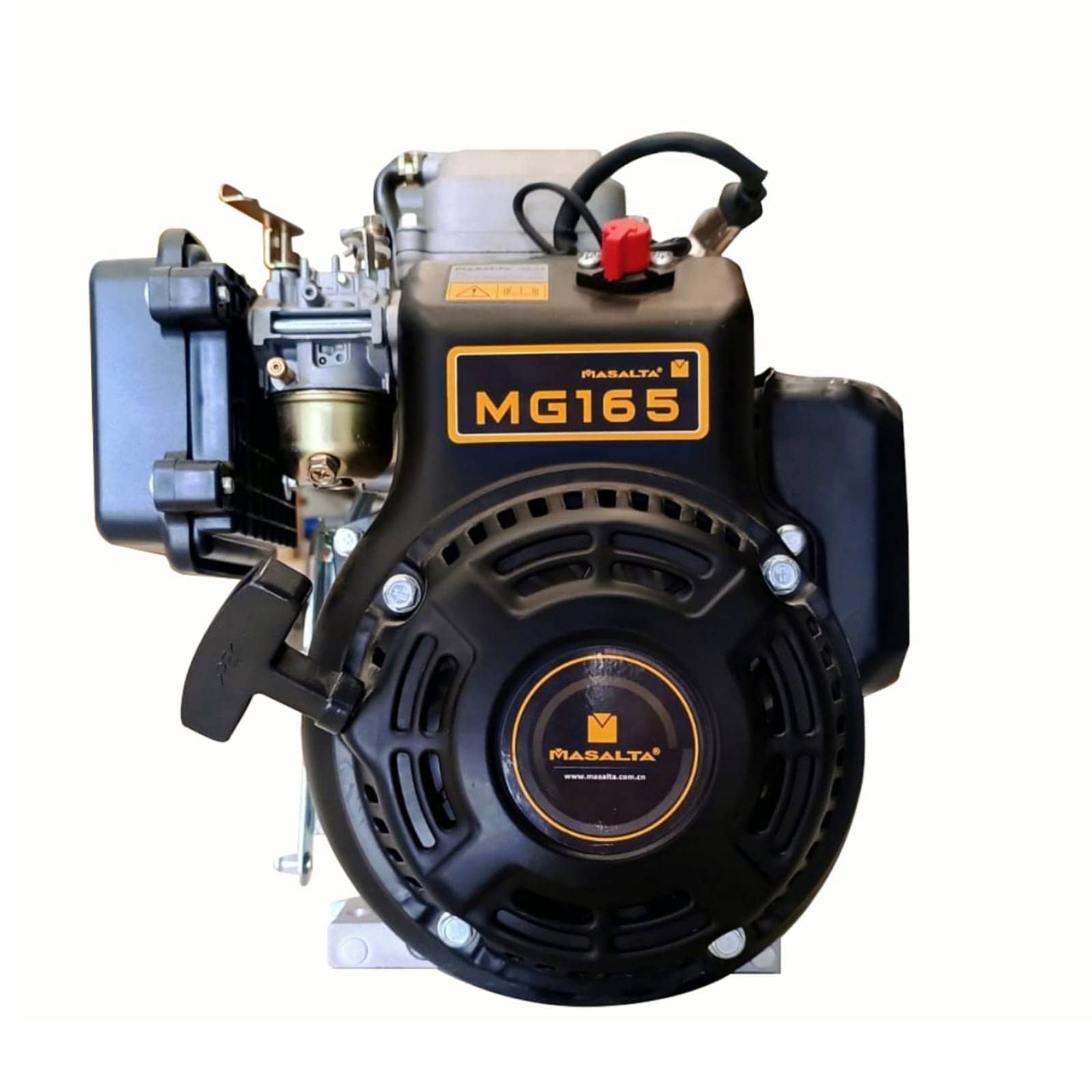

ENGINE MG165 (1) | Parte #MG165 | $395,00 | |
75 |
|

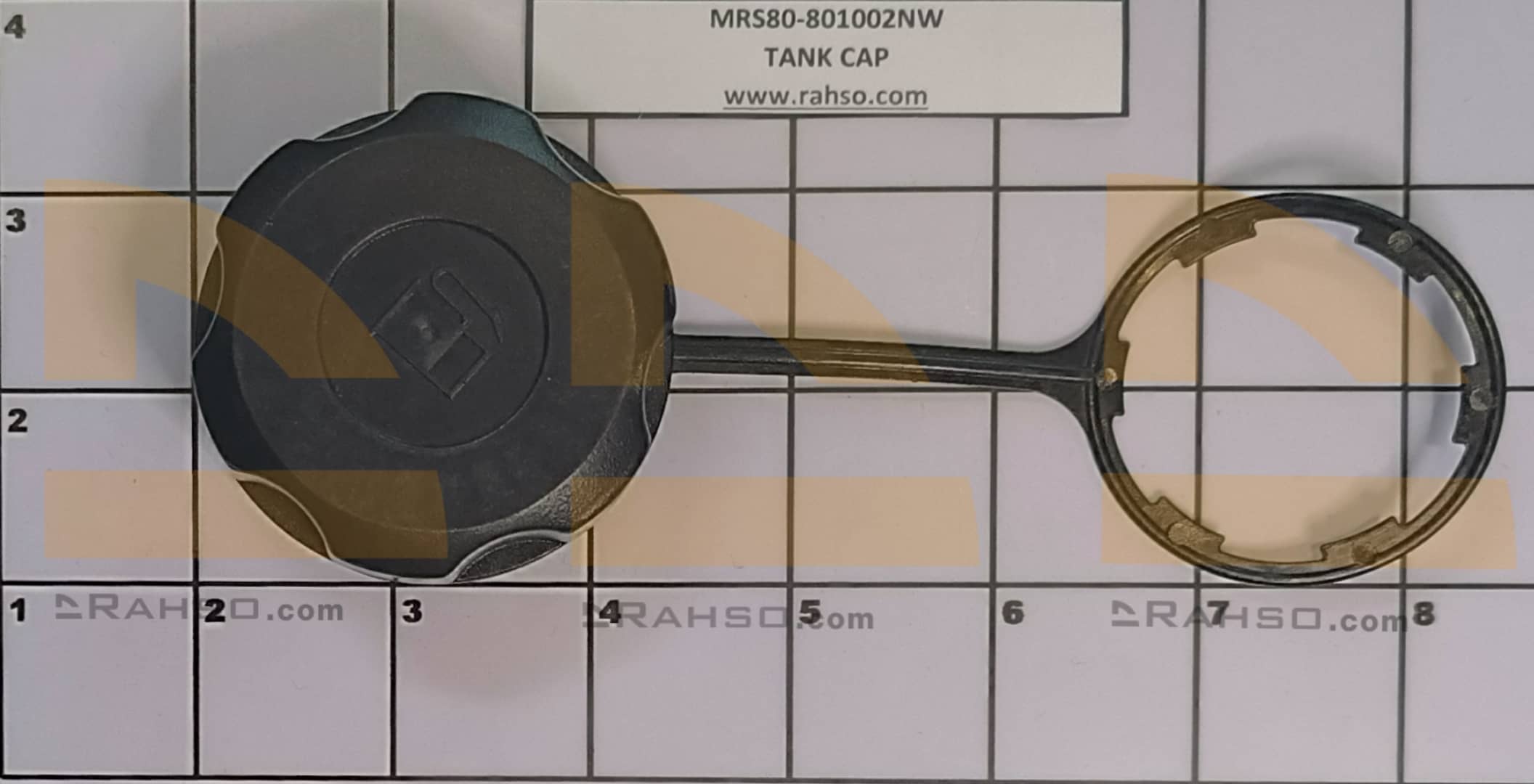

TANK CAP (1) | Parte #MRS80-801002NW | $11,35 | |
76 |
|

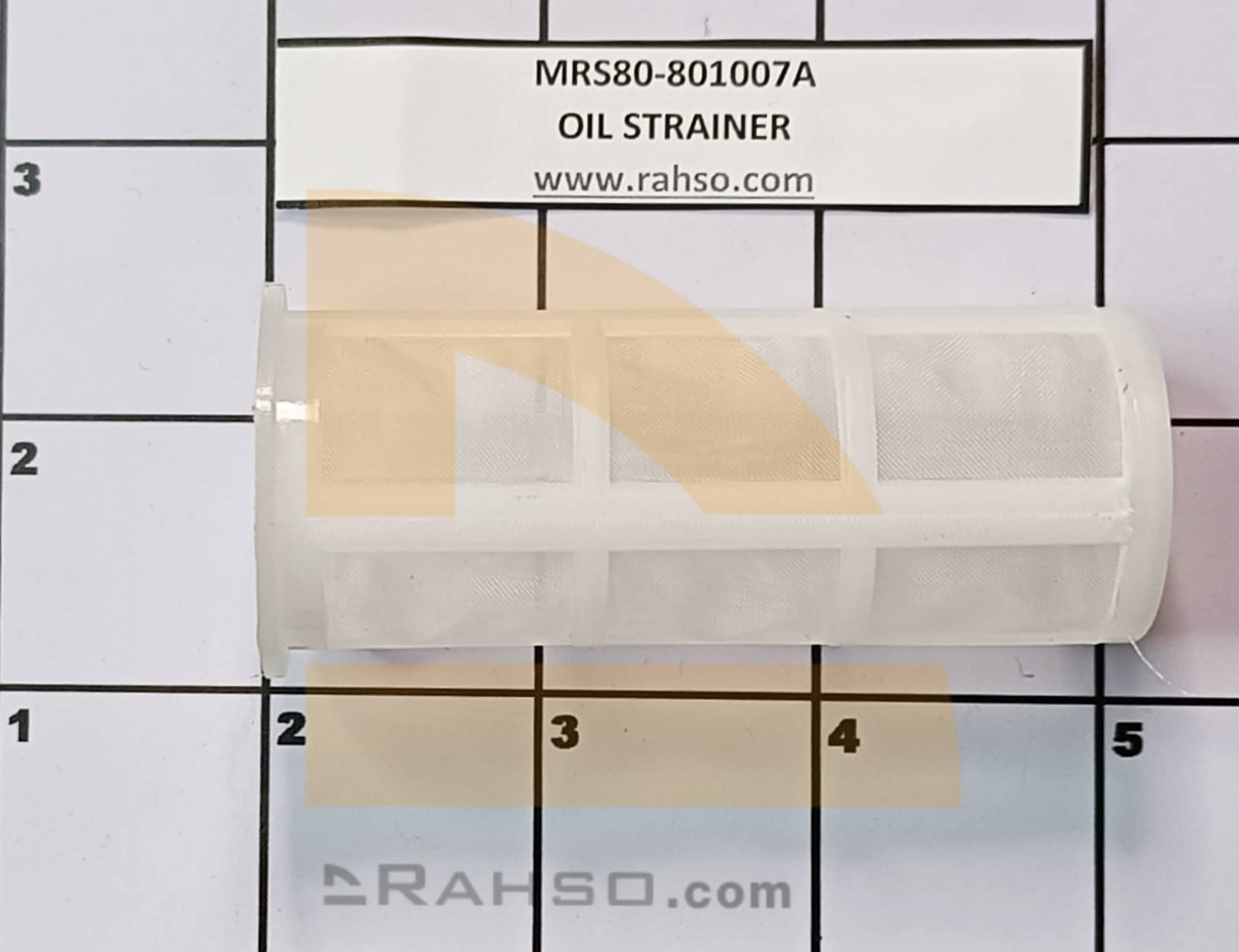

OILS STRAINER (1) | Parte #MRS80-801007A | $2,26 | |
82 |
|

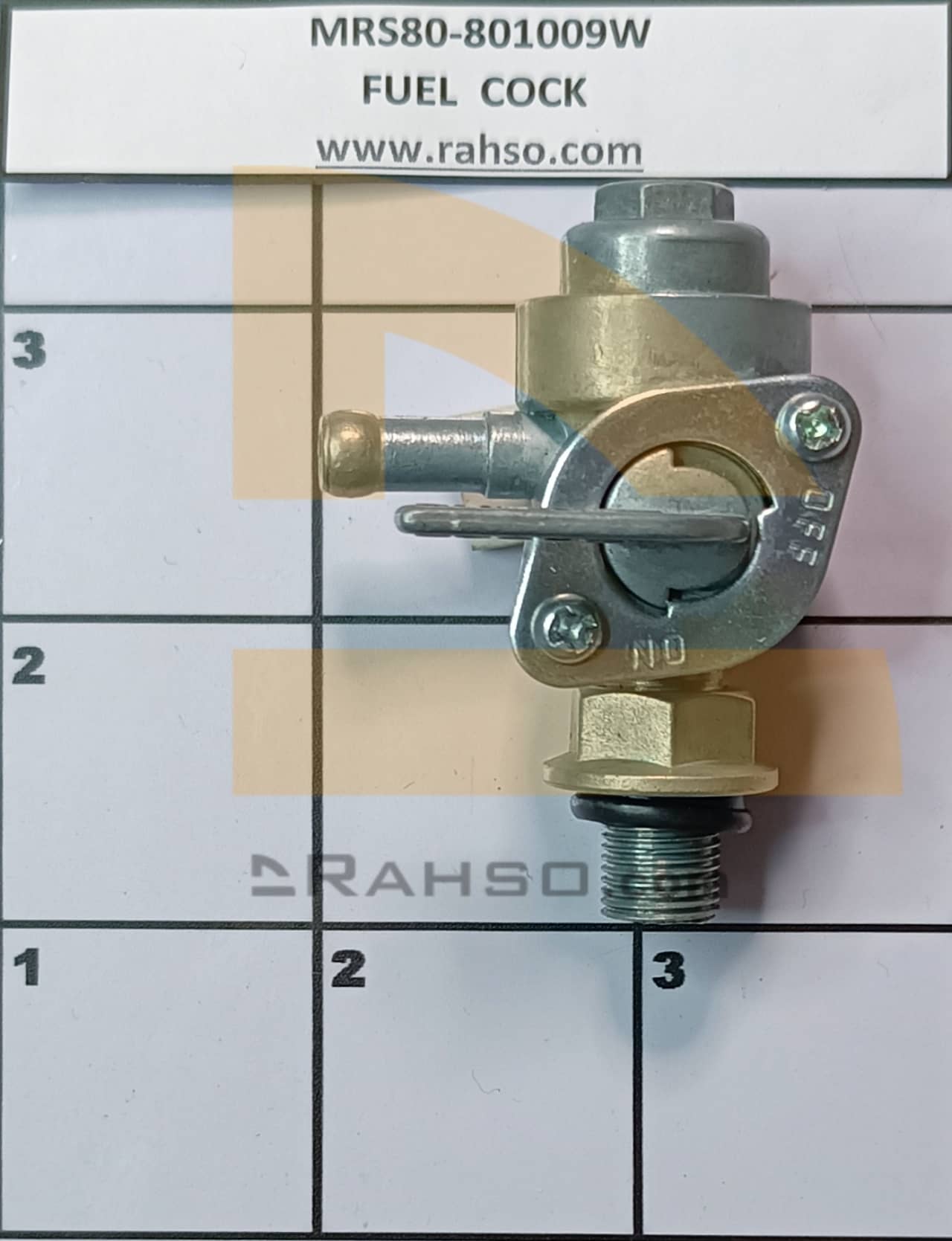

FUEL COCK (1) | Parte #MRS80-801009W | $11,94 | |
87 |
|

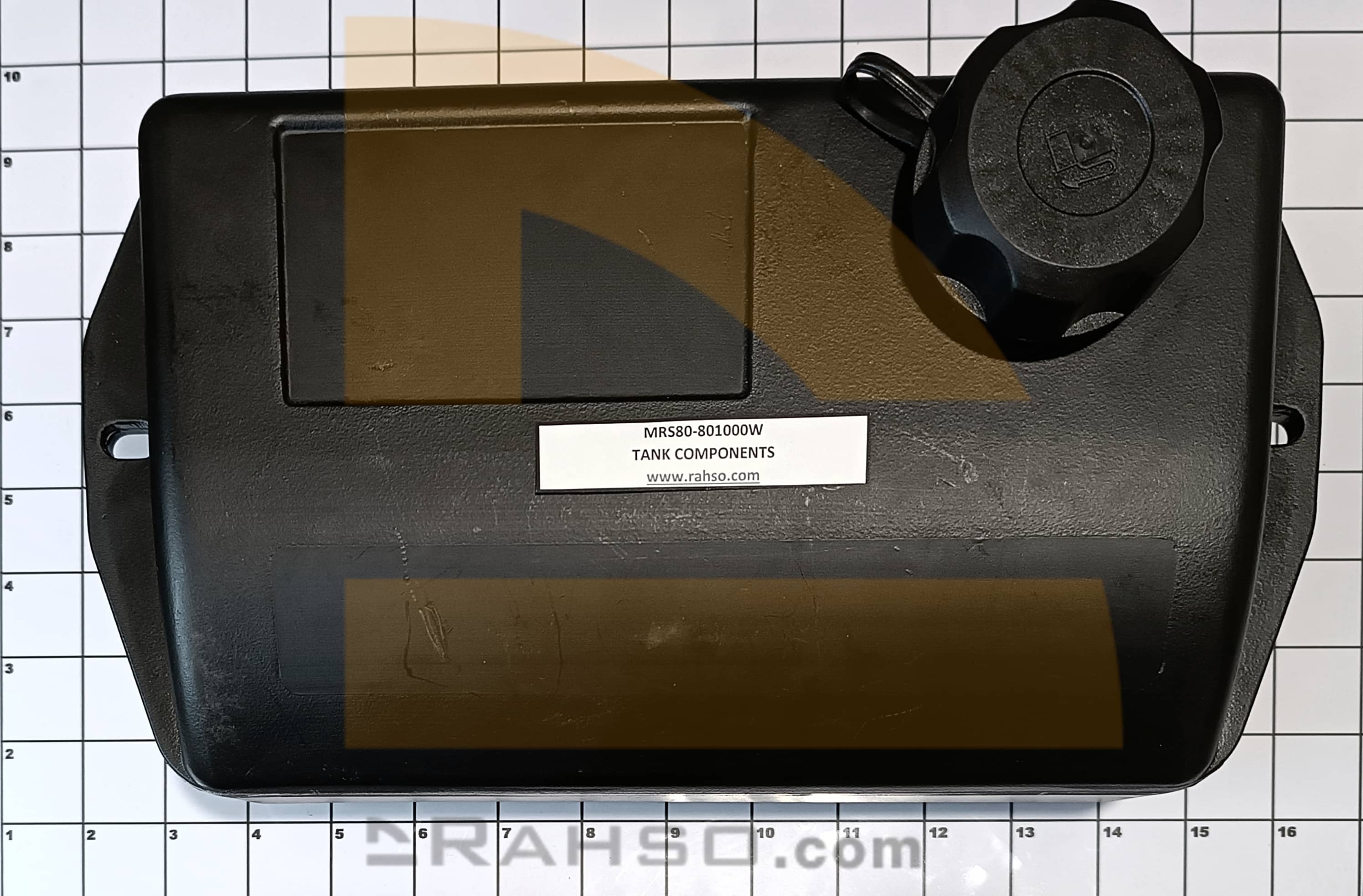

TANK COMPONENTS/ TANK ASSY (1) | Parte #MRS80-801000W | $73,78 | |
92 |
|

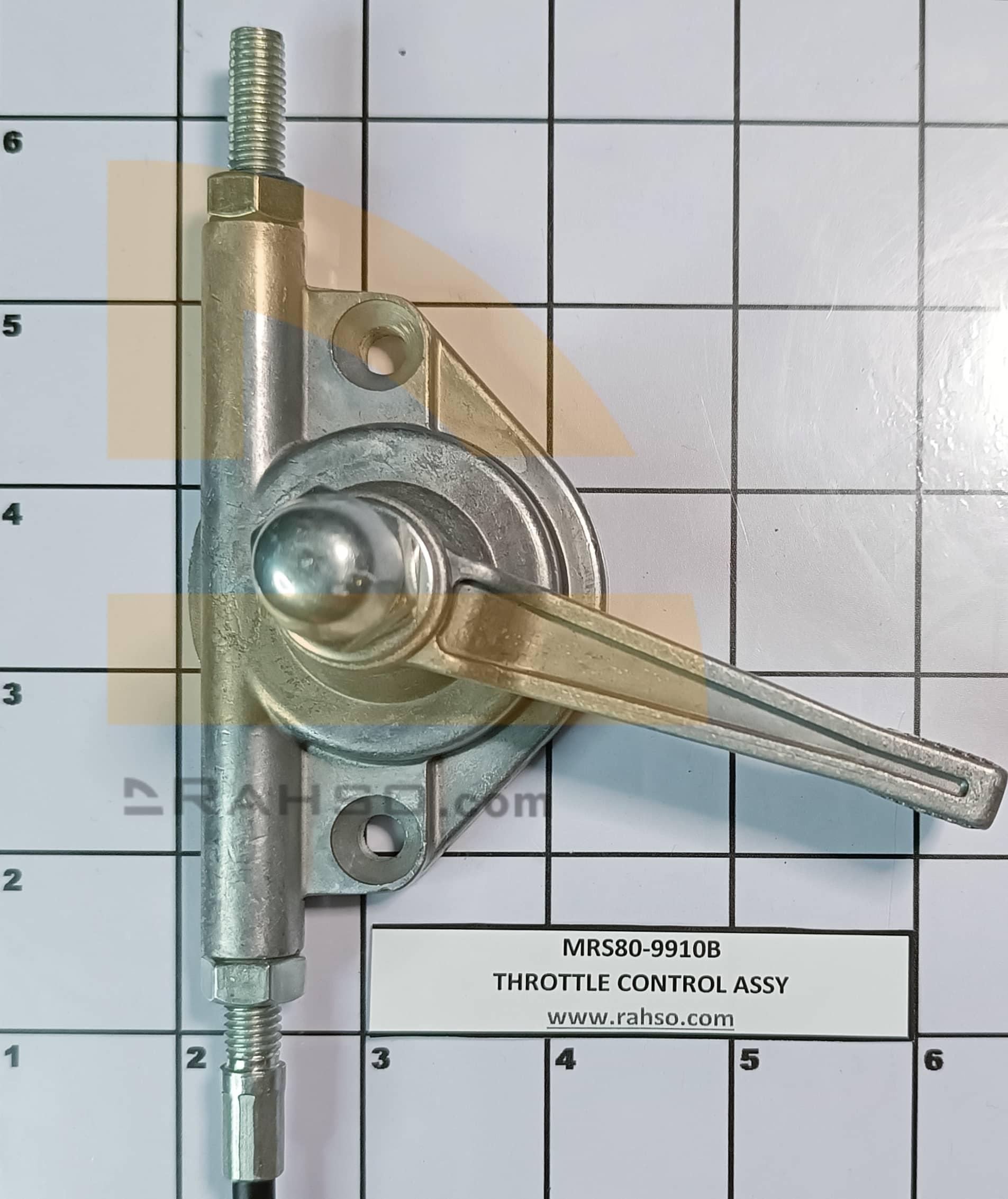

THROTTLE CONTROL ASSY (1) | Parte #MRS80-9910B | $51,40 | |
106 |
|

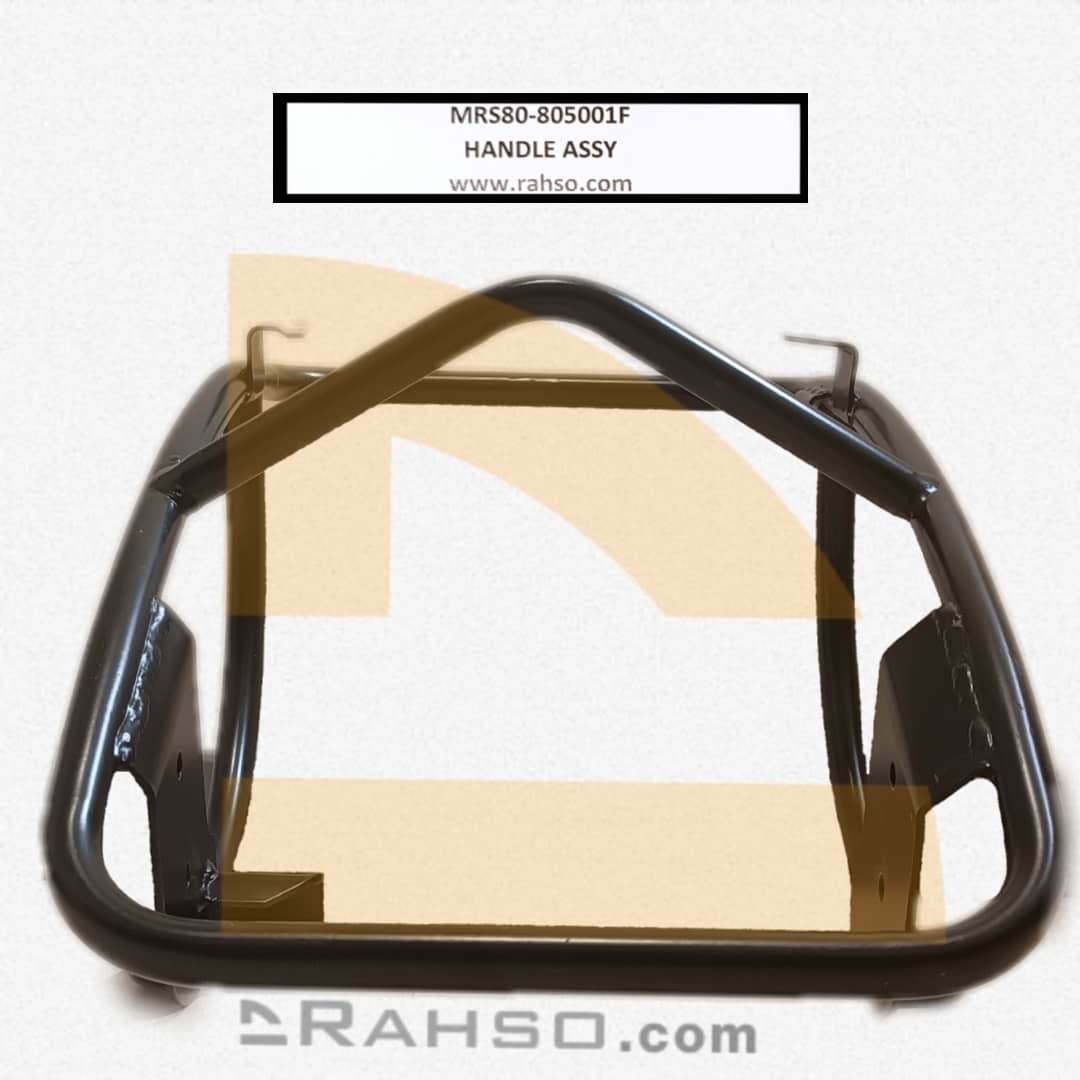

HANDLE ASSY/COMPONENTS (1) | Parte #MRS80-805001F | $95,54 | |
110 |
|

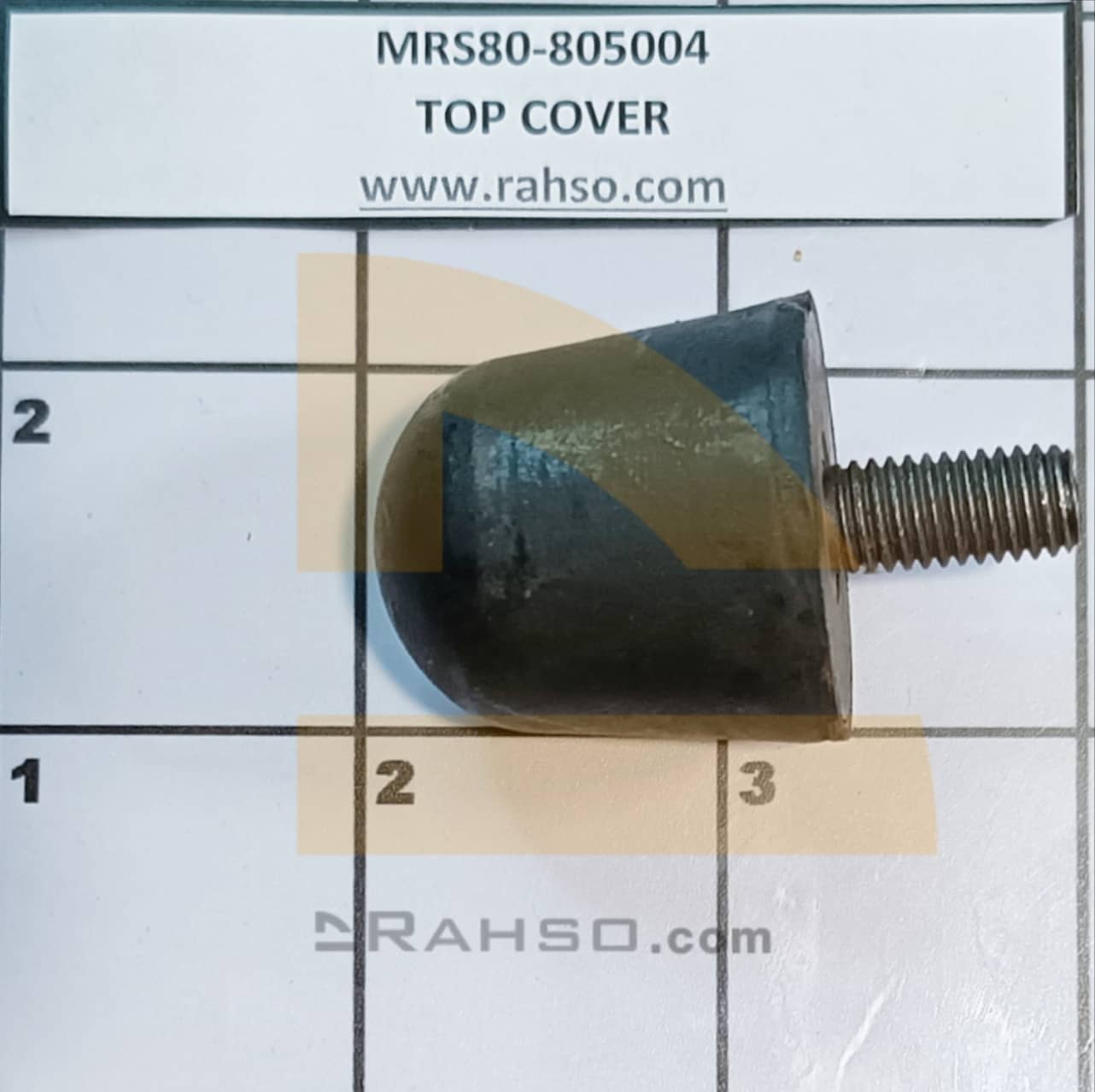

RUBBER/TOP COVER (1) | Parte #MRS80-805004 | $8,45 | |
116 |
|

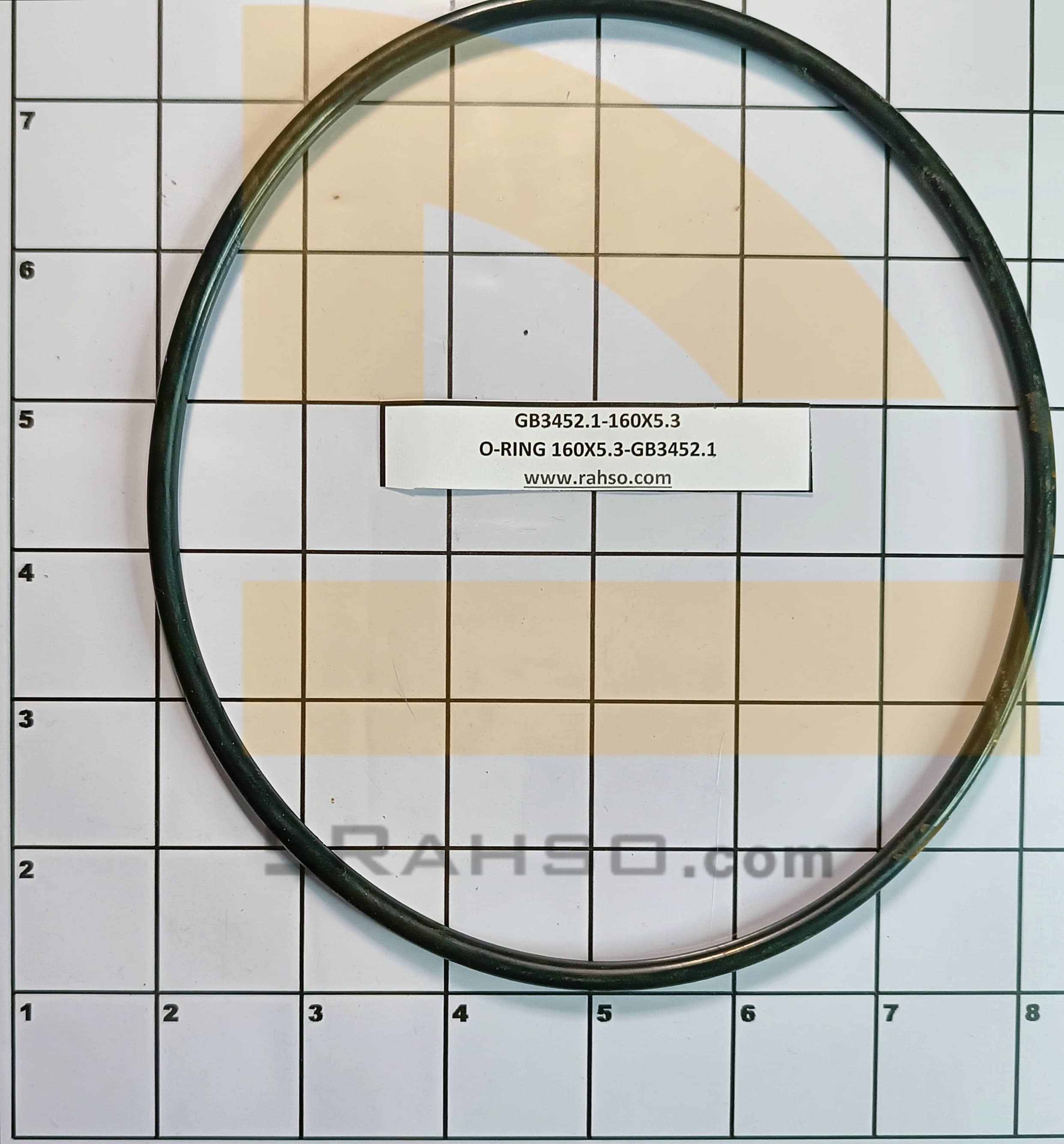

O-RING 160X5.3-GB3452.1 (1) | Parte #GB3452.1-160X5.3 | $11,13 | |
117 |
|

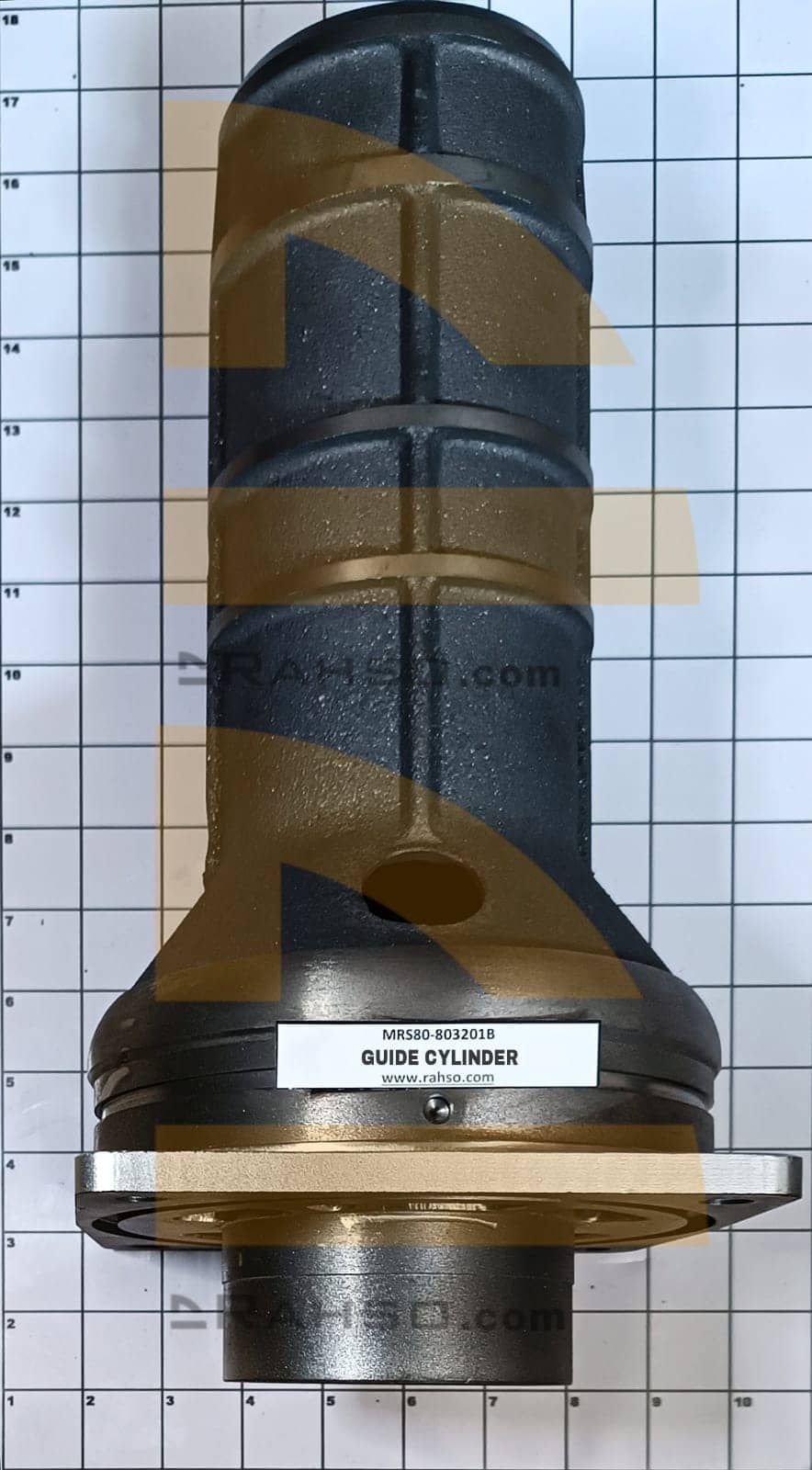

GUIDE CYLINDER/ GUIDE BARREL (1) | Parte #MRS80-803201B | $123,67 | |
120 |
|

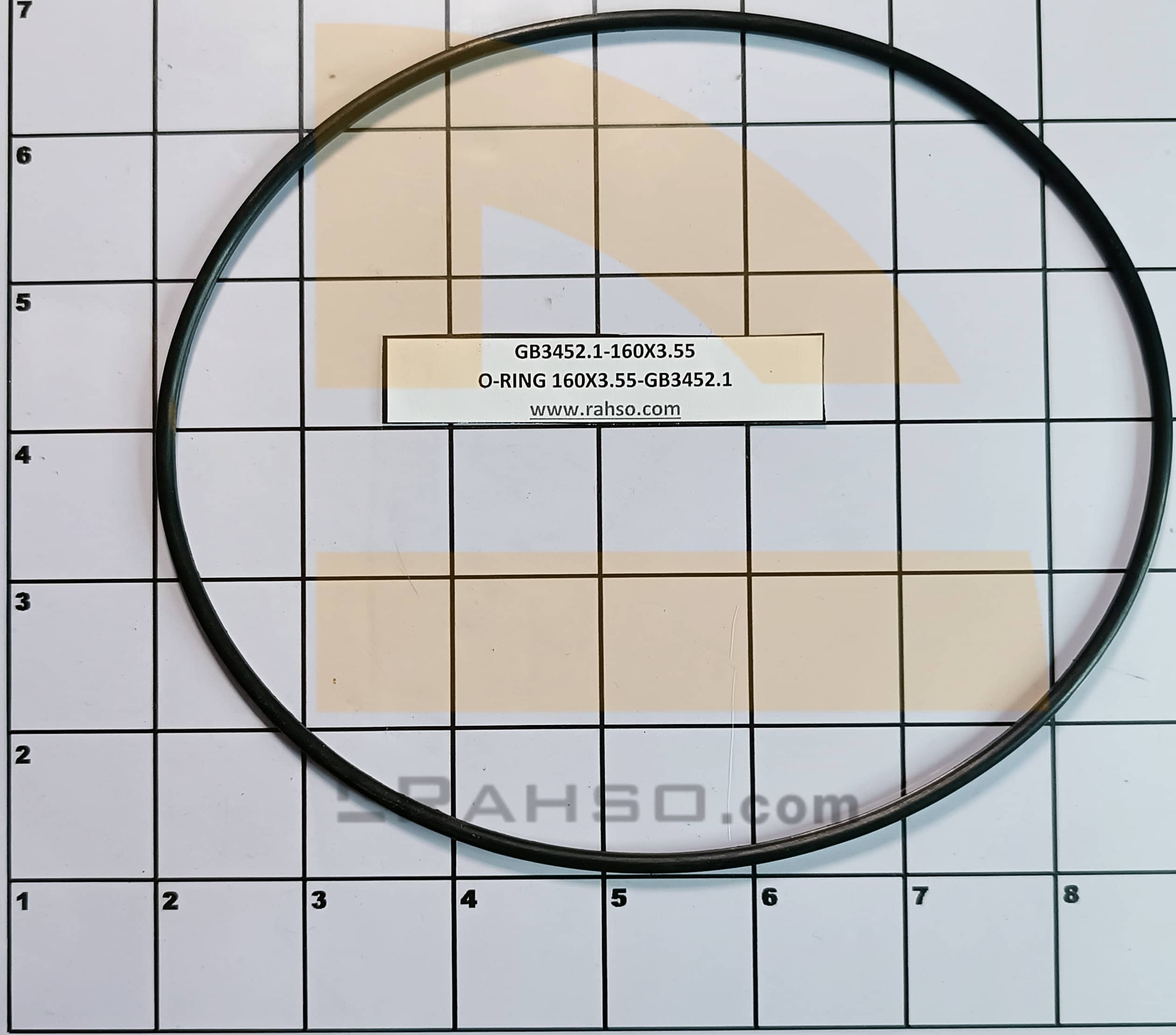

O-RING 160X3.55-GB3452.1 (2) | Parte #GB3452.1-160X3.55 | $16,07 | |
121 |
|

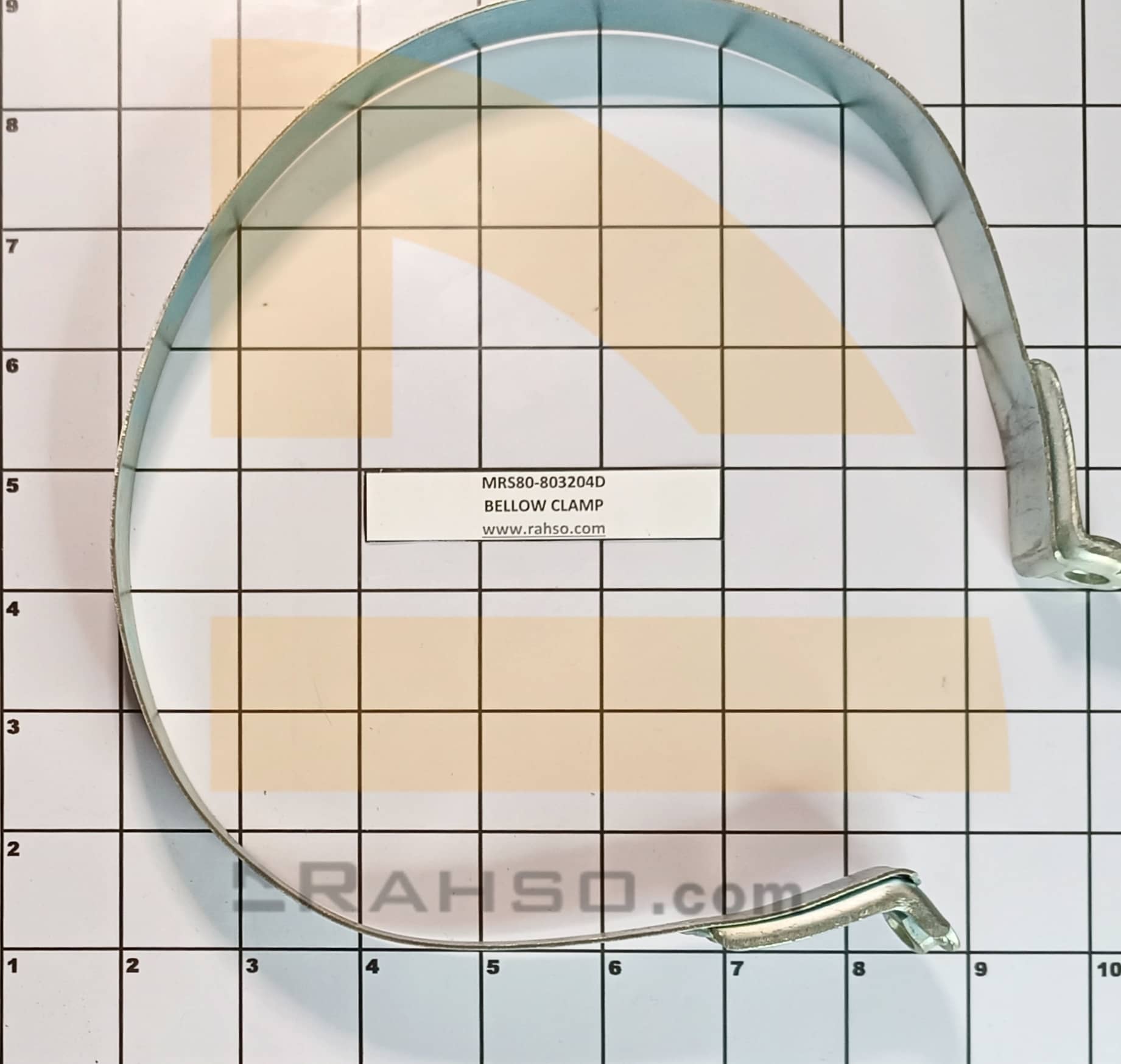

BELLOW CLAMP (2) | Parte #MRS80-803204D | $50,33 | |
122 |
|

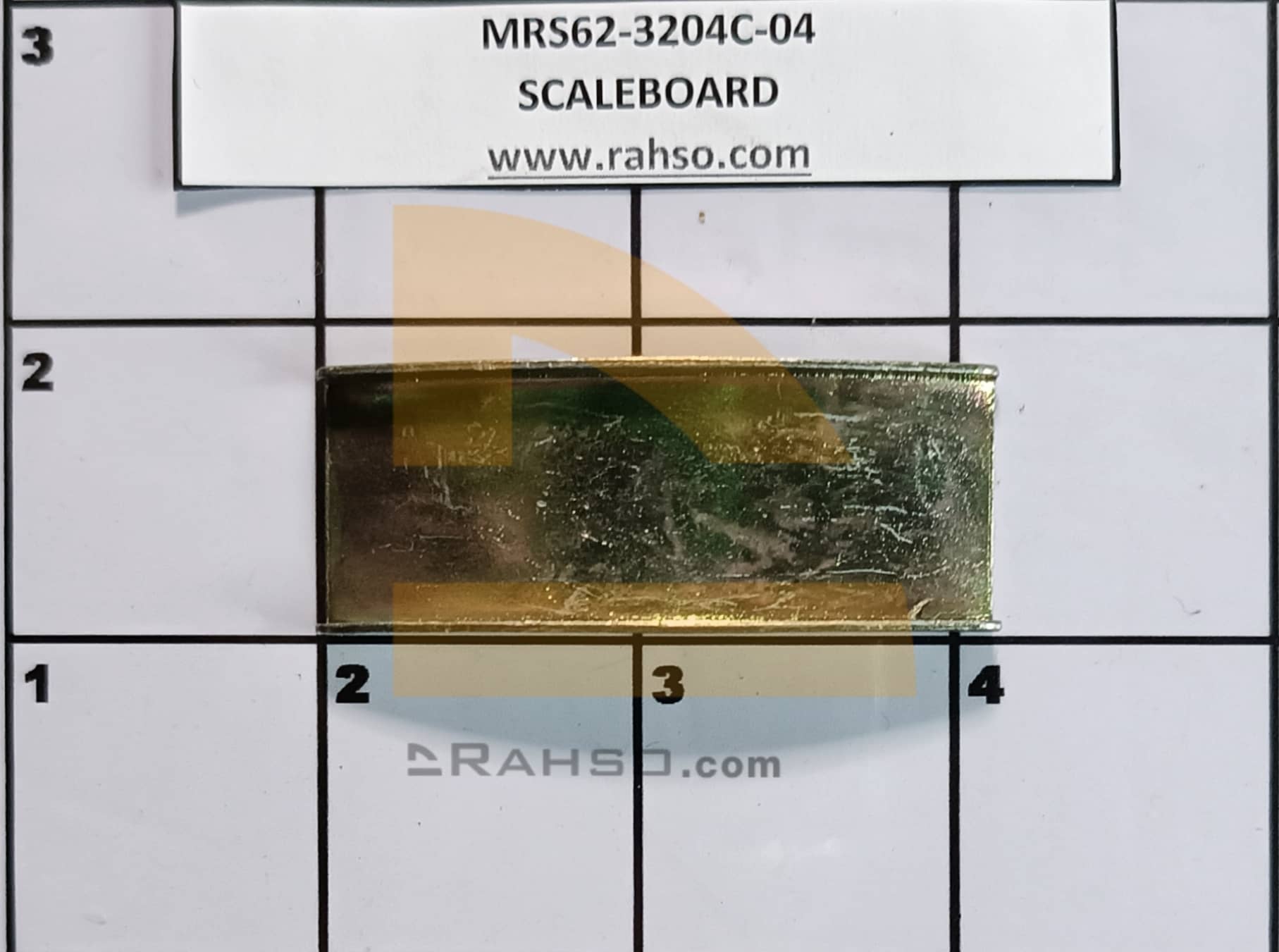

LINER PLATE/SCALEBOARD (1) | Parte #MRS62-3204C-04 | $3,39 | |
125 |
|

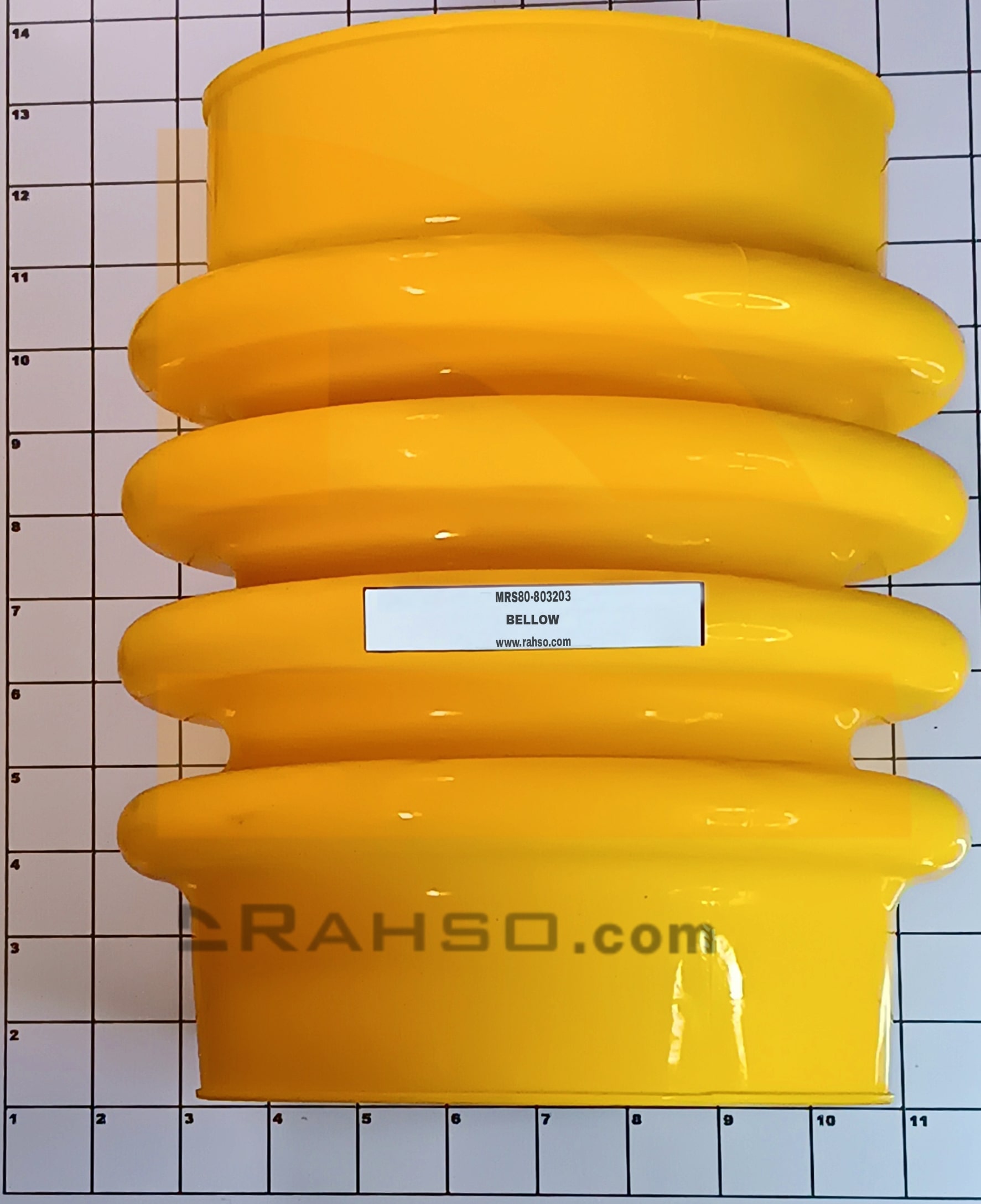

BELLOW (1) | Parte #MRS80-803203 | $240,88 | |
126 |
|

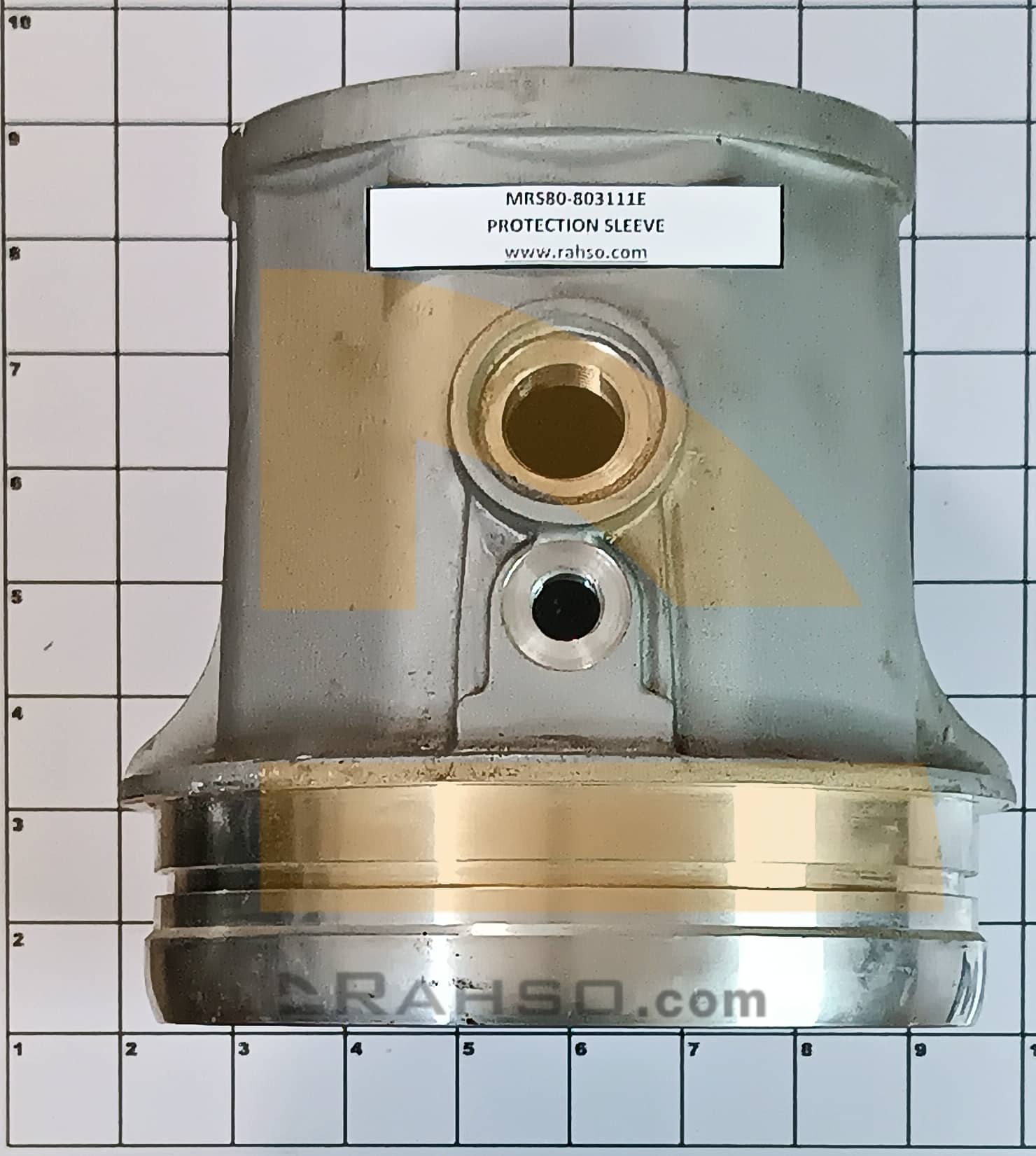

DOWN GUIDING CYLINDER/PROTECTION SLEEVE (1) | Parte #MRS80-803111E | $475,33 | |
129 |
|

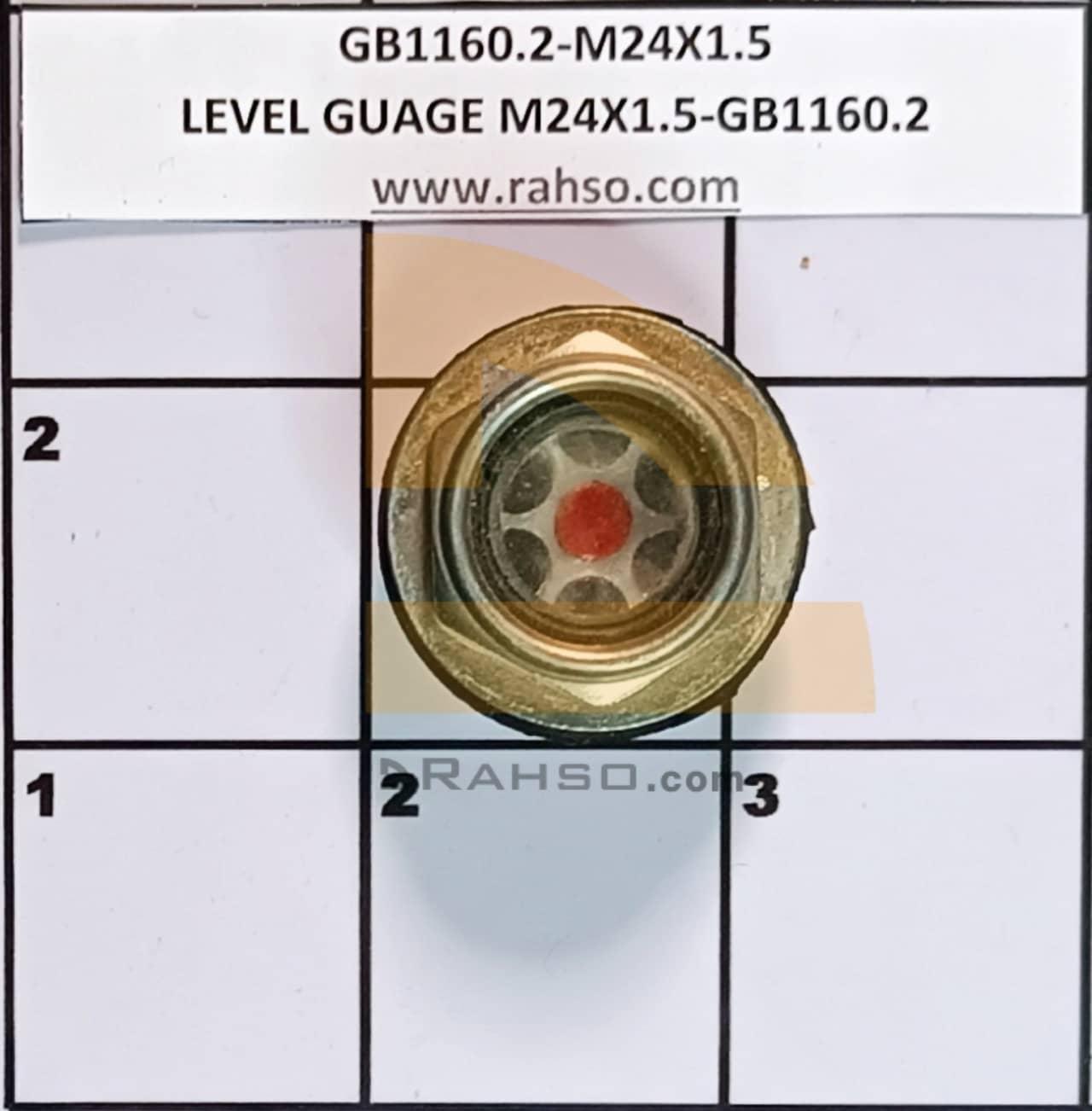

LEVEL GAUGE M24X1.5-GB1160.2 (1) | Parte #GB1160.2-M24X1.5 | $15,82 | |
131 |
|

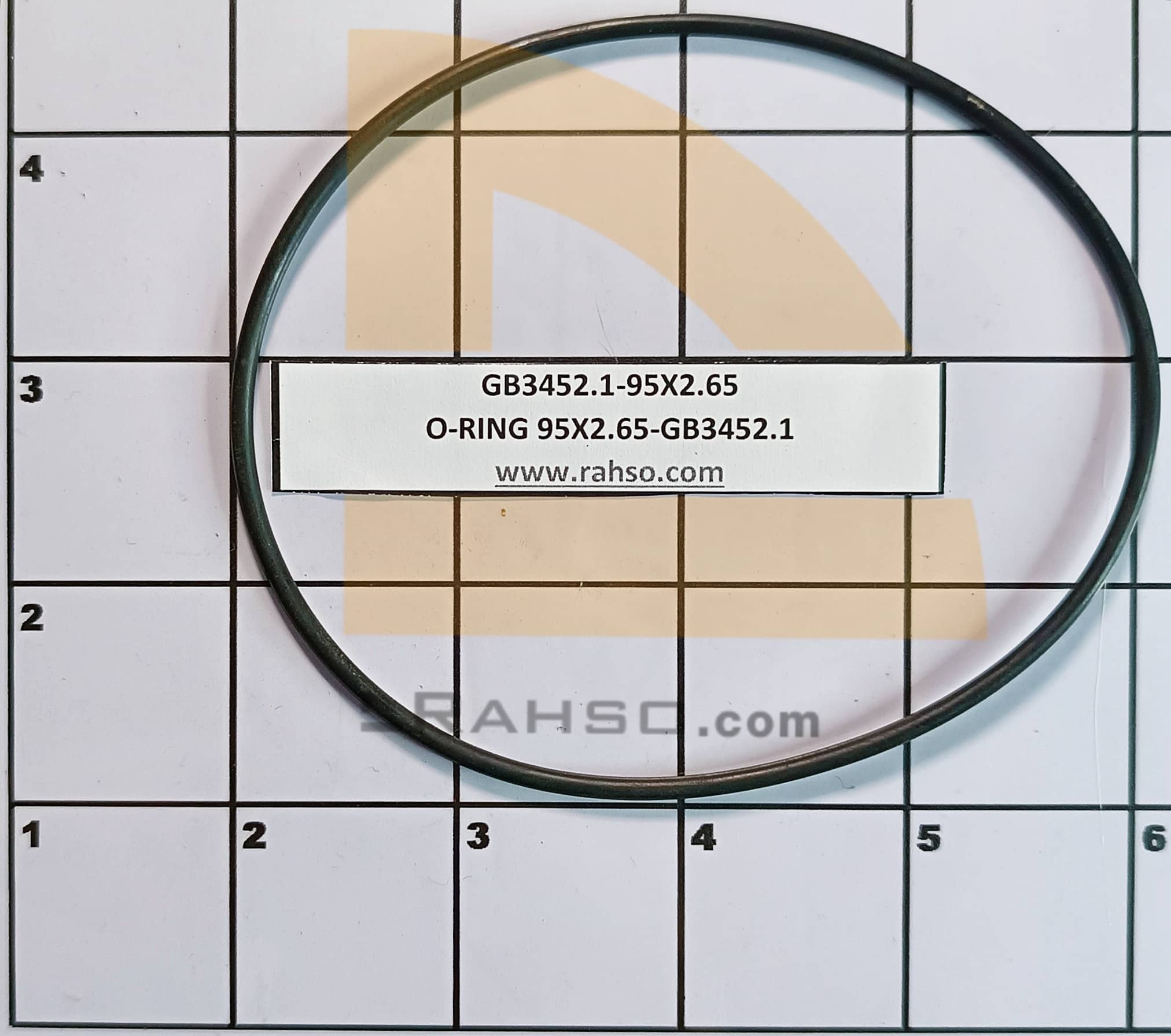

O-RING 95X2.65-GB3452.1 (1) | Parte #GB3452.1-95x2.65 | $4,47 | |
132 |
|

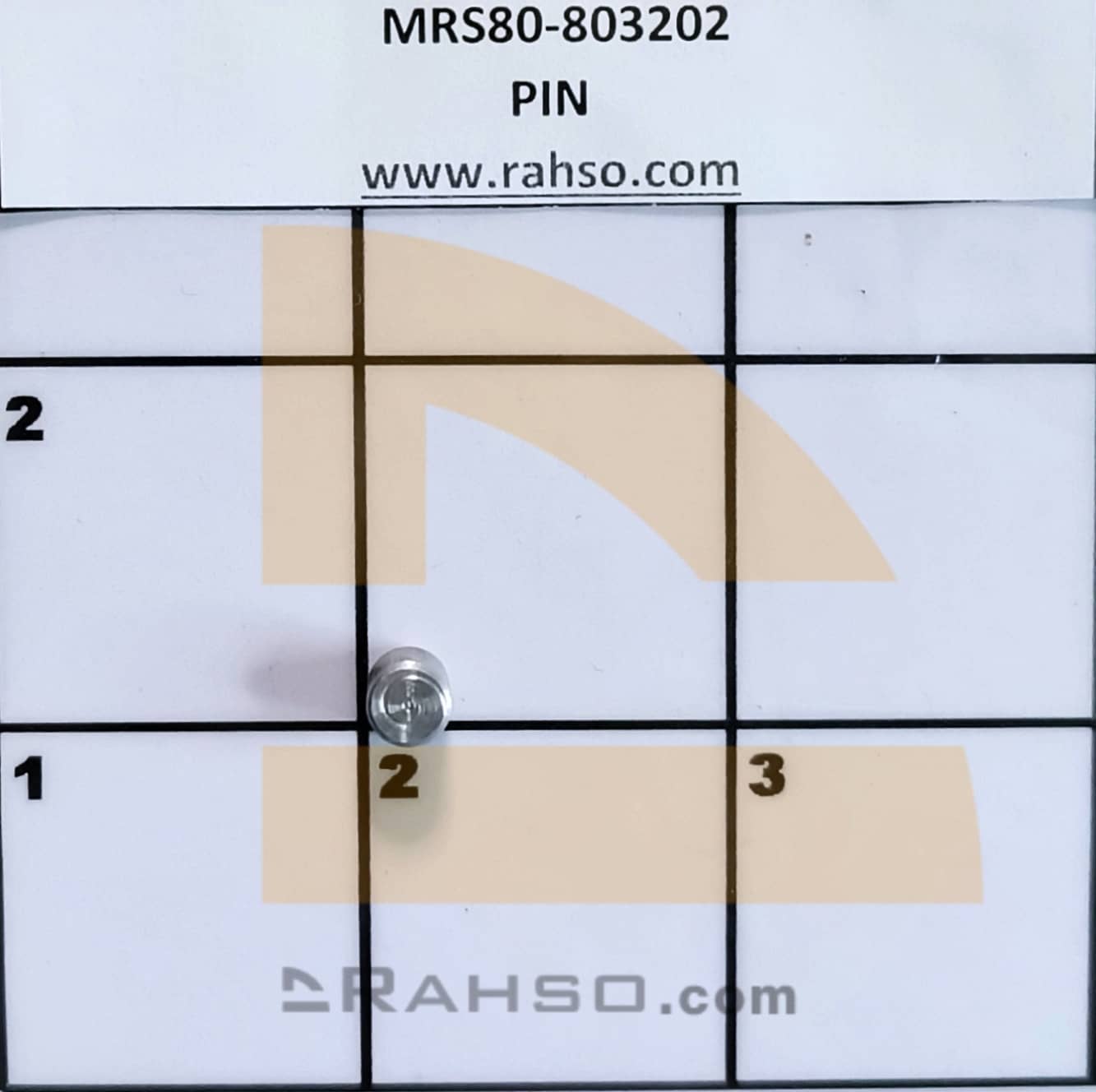

PIN (2) | Parte #MRS80-803202 | $2,19 | |
133 |
|

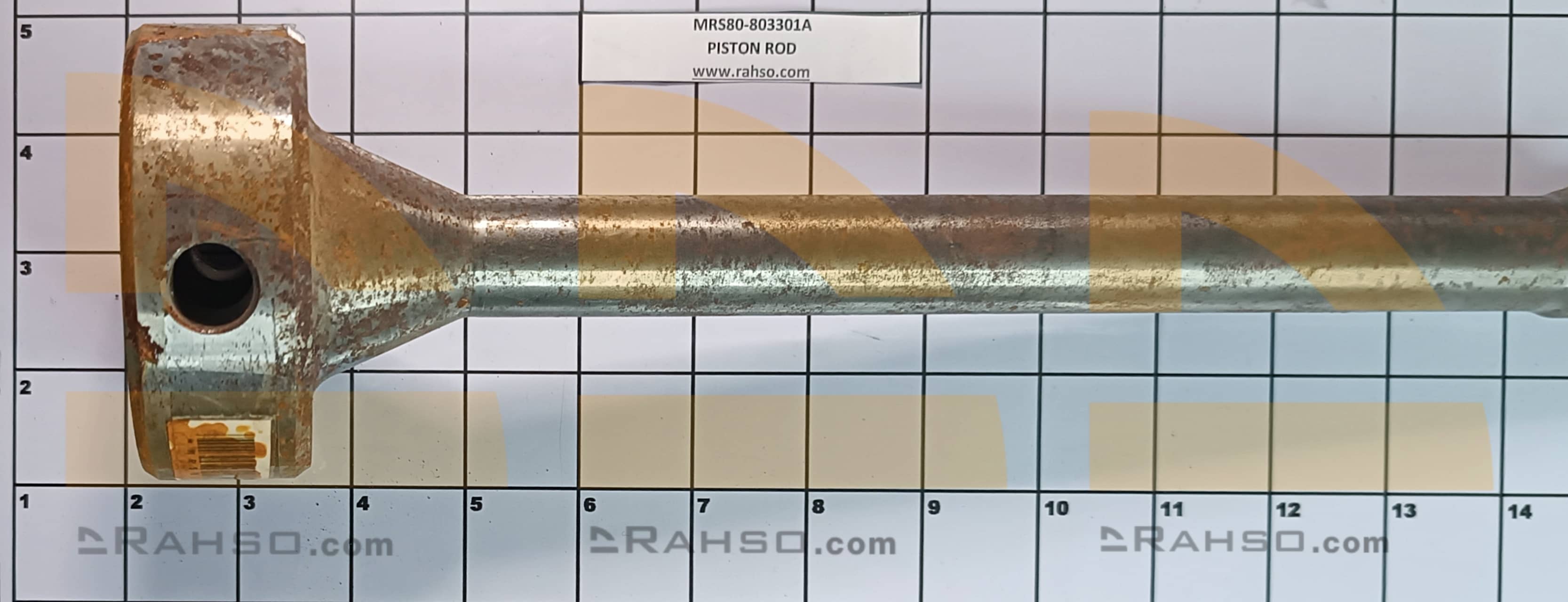

PISTON ROD (1) | Parte #MRS80-803301A | $222,10 | |
137 |
|

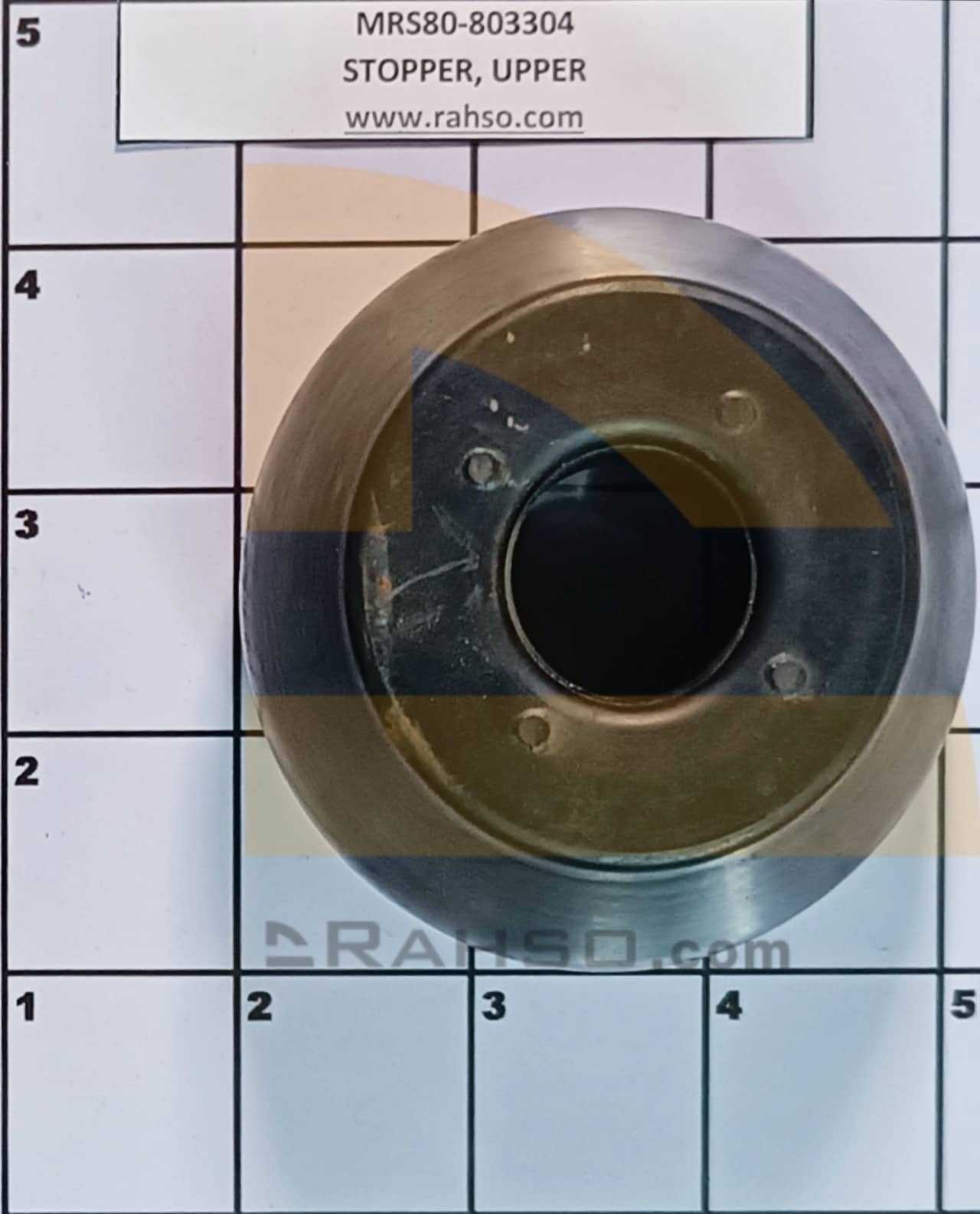

STOPPER, UPPER/ RUBBER (1) | Parte #MRS80-803304 | $17,94 | |
138 |
|

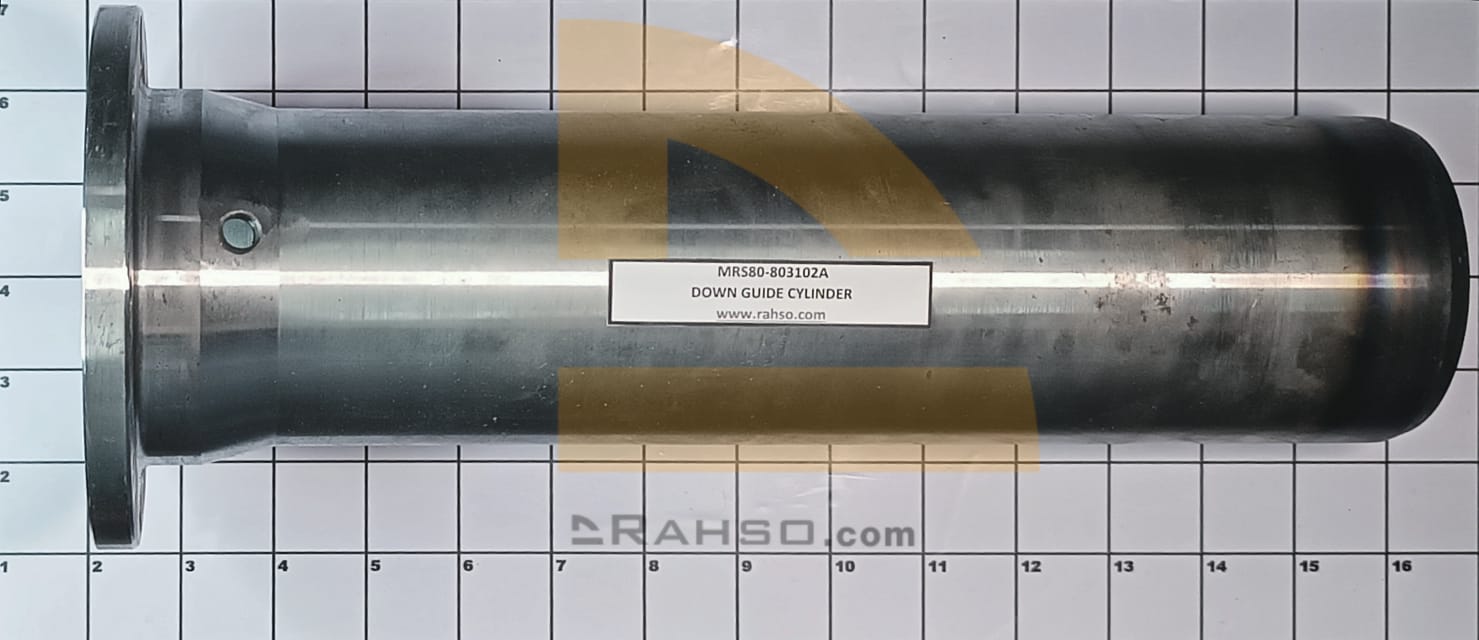

SPRING CYLINDER (1) | Parte #MRS80-803102A | $303,68 | |
139 |
|

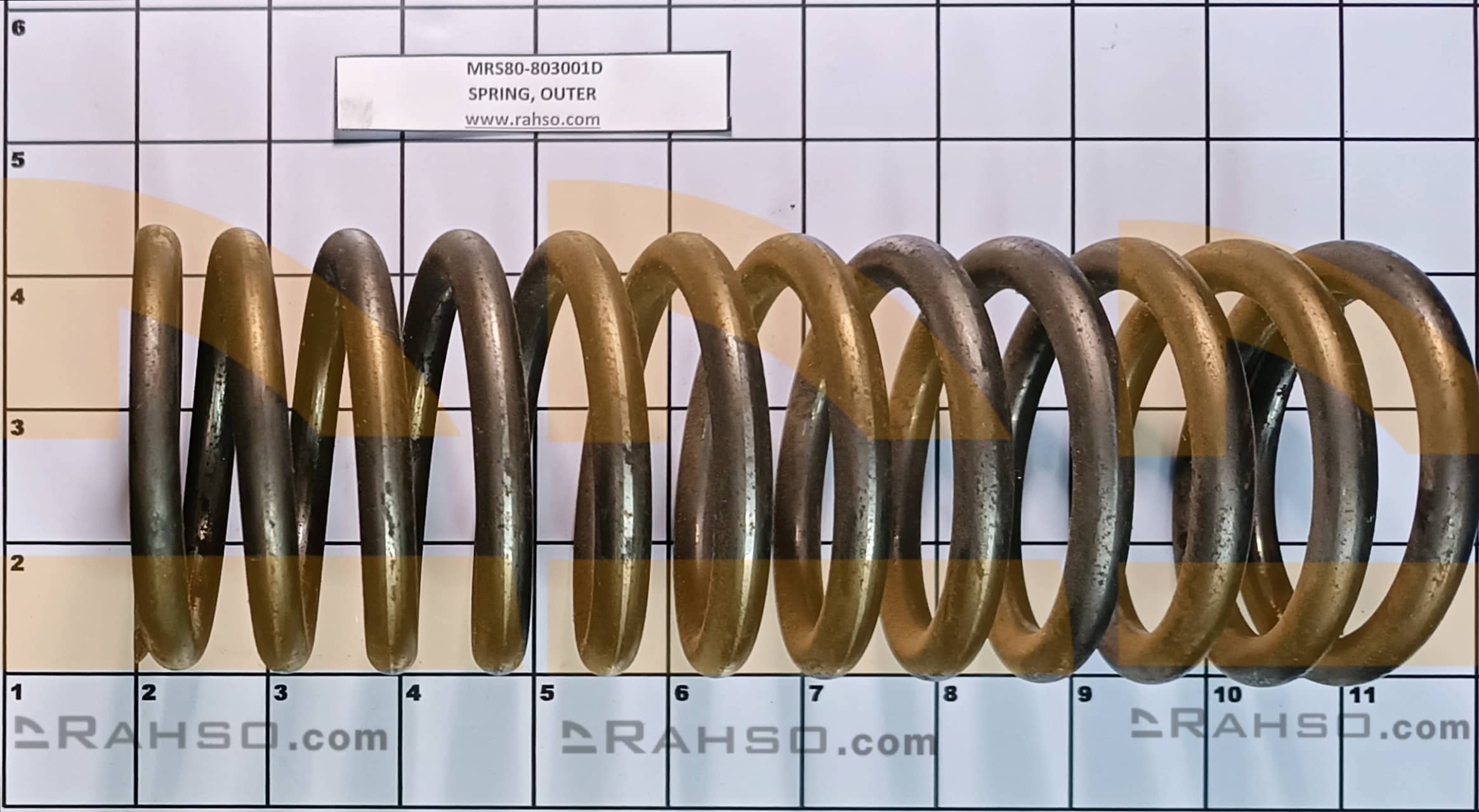

SPRING, OUTER (2) | Parte #MRS80-803001D | $263,74 | |
141 |
|

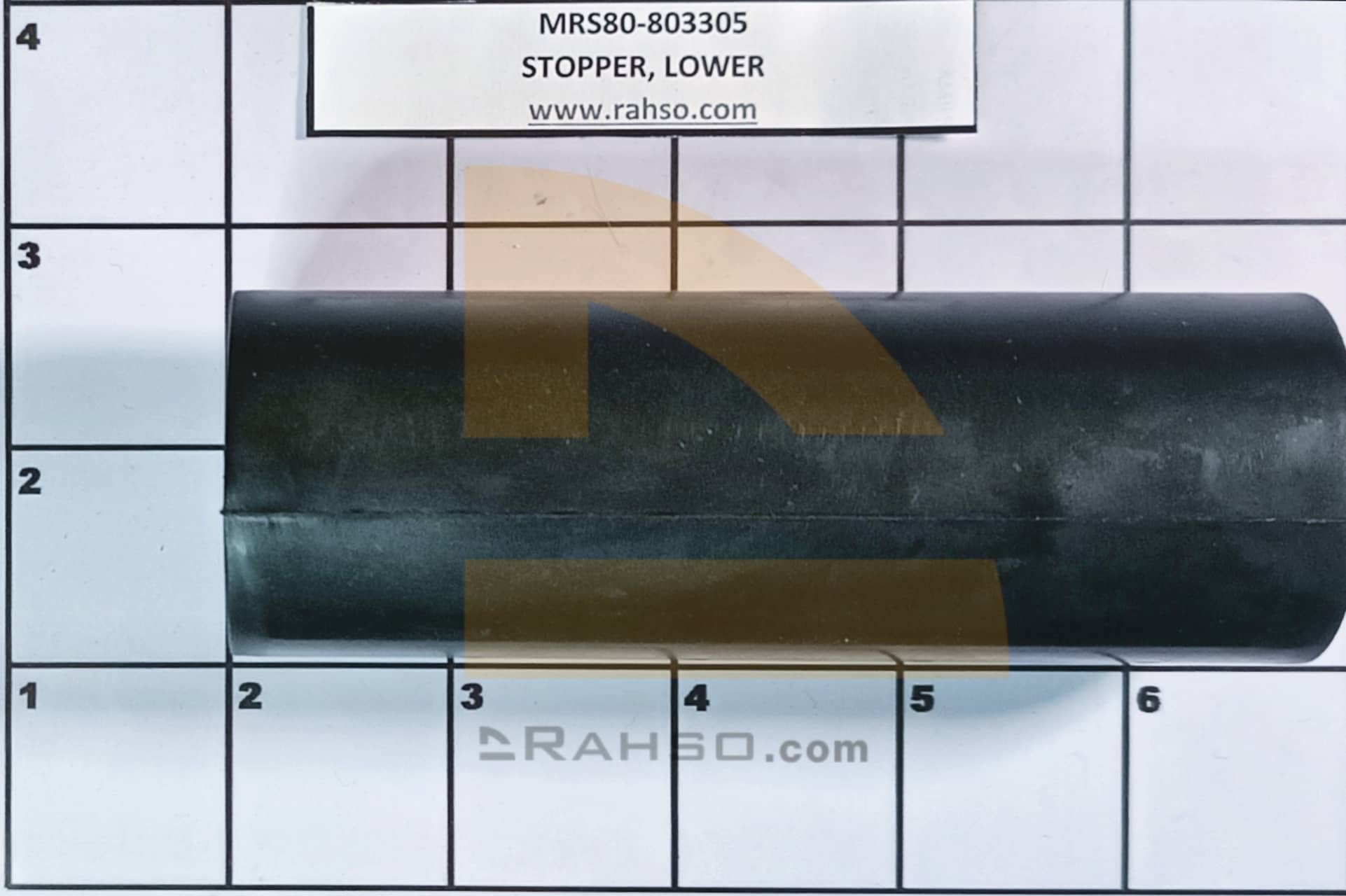

STOPPER, LOWER/RUBBER COT (1) | Parte #MRS80-803305 | $50,54 | |
142 |
|

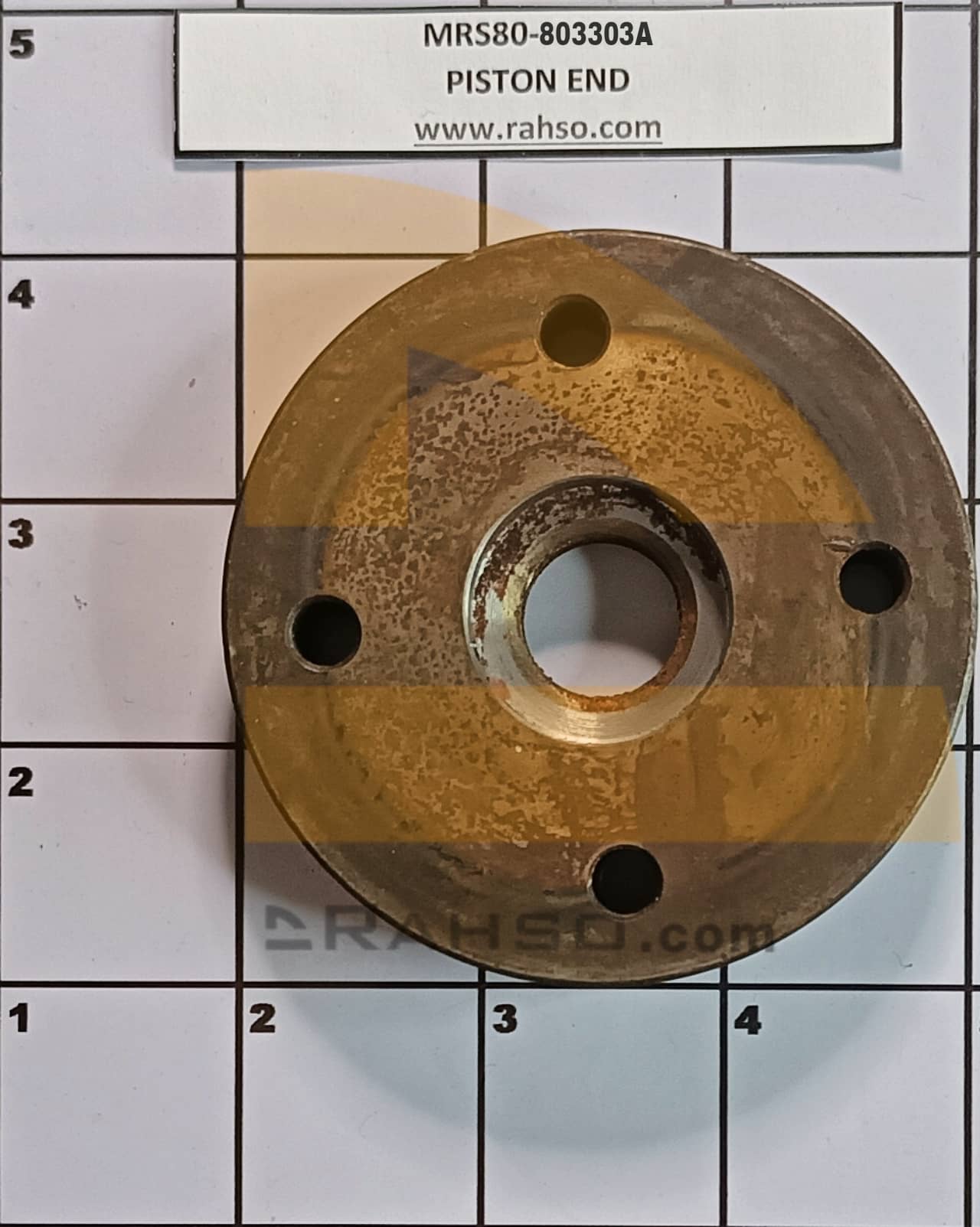

PISTON END (1) | Parte #MRS80-803303A | $75,81 | |
144 |
|

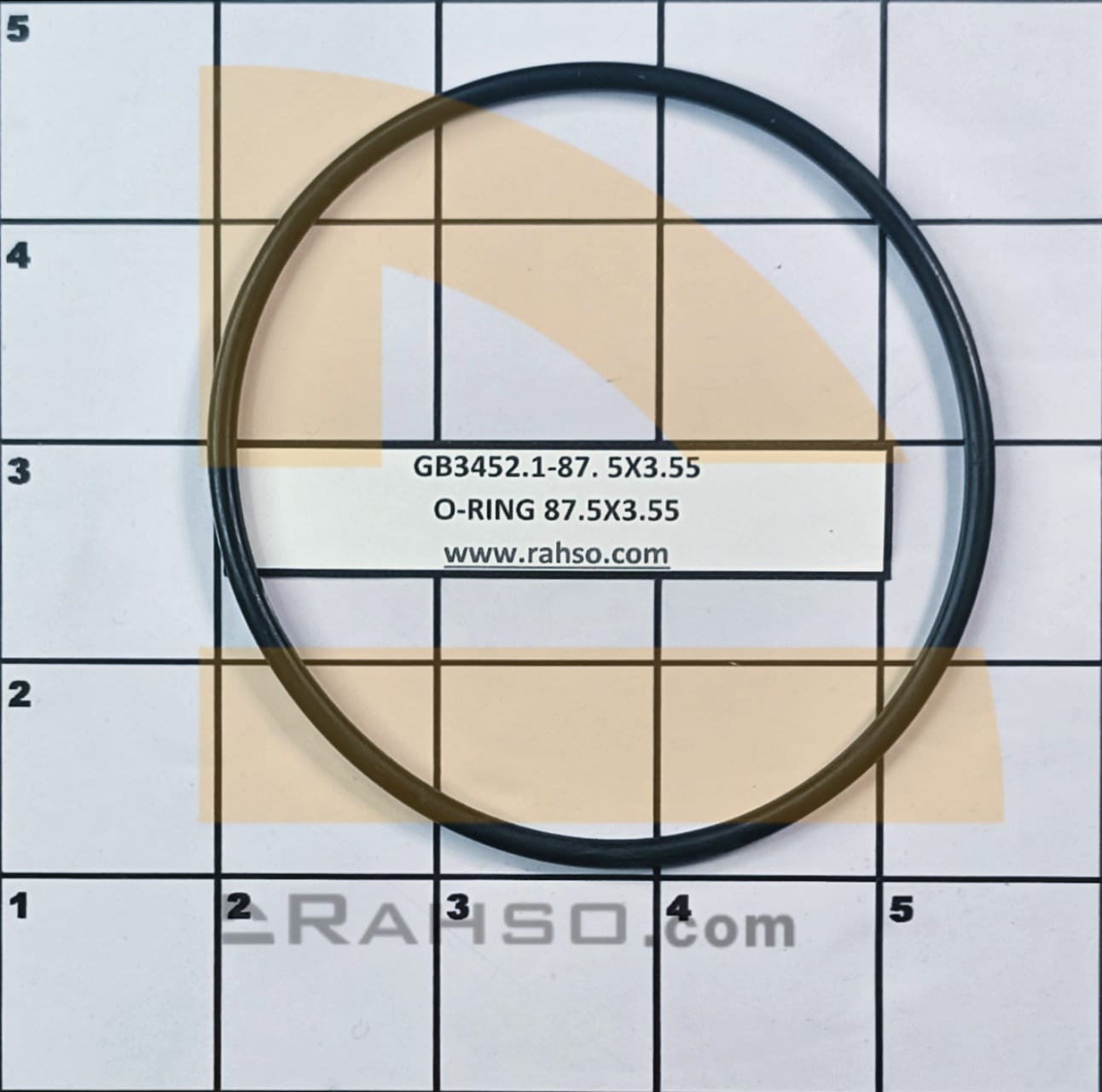

O-RING 87.5X3.55-GB3452.1 (1) | Parte #GB3452.1-87.5X3.55 | $6,66 | |
146 |
|

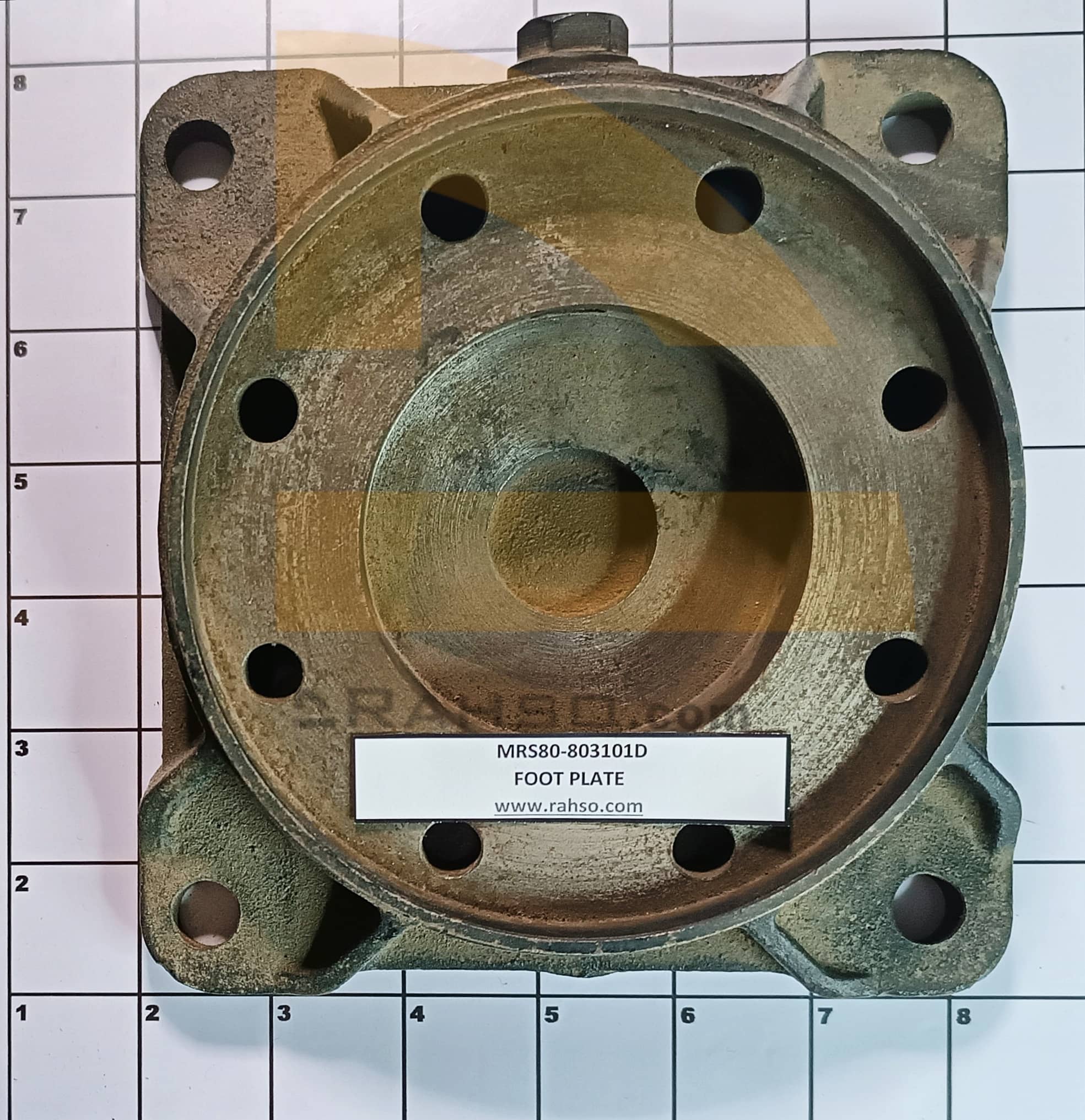

FOOT PLATE (1) | Parte #MRS80-803101D | $319,34 | |
164 |
|

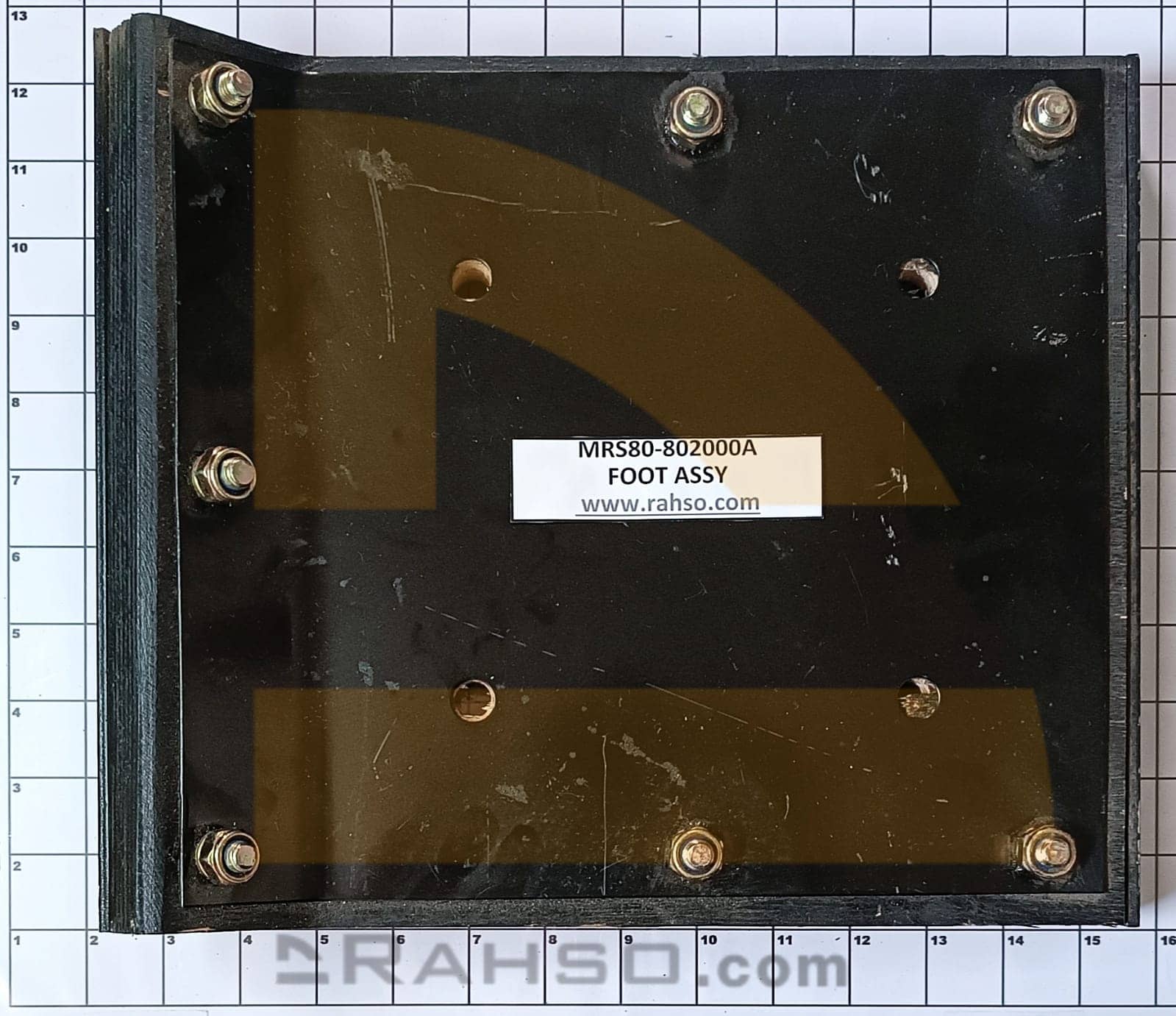

FOOT ASSY (1) | Parte #MRS80-802000A | $191,69 |
